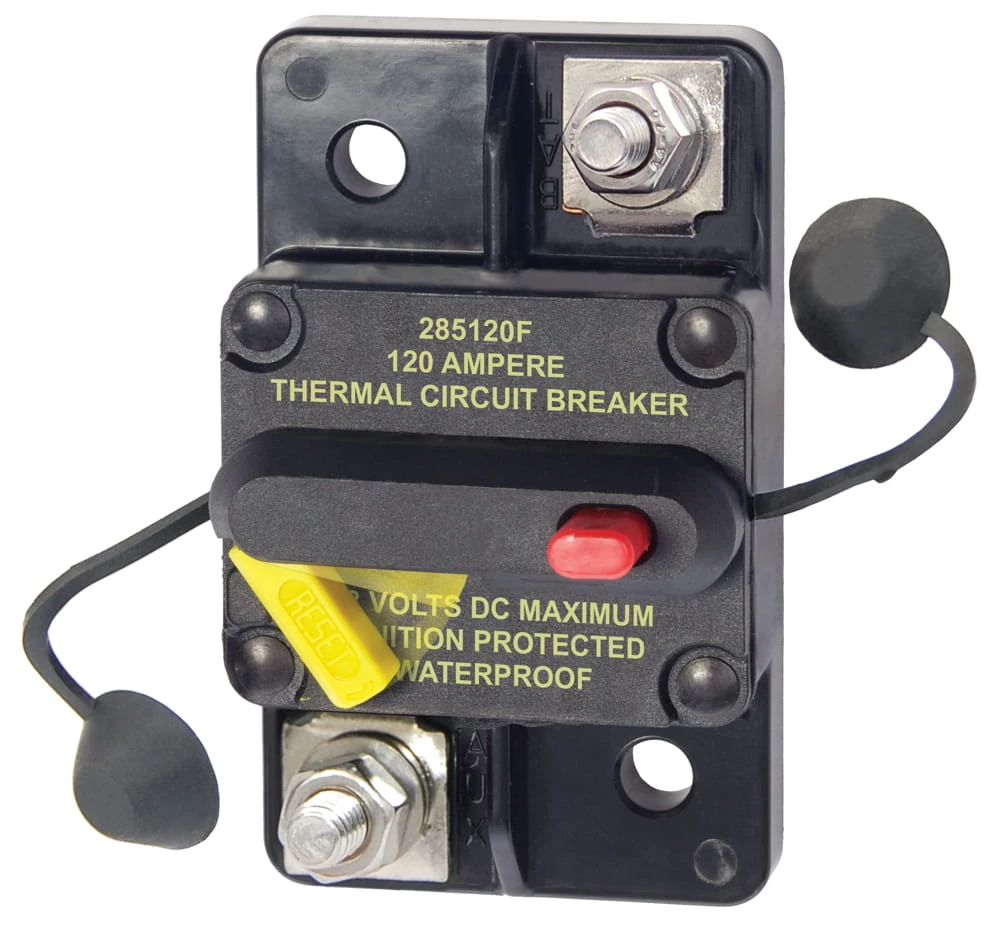

Blue Sea 285-Series Circuit Breaker Surface Mount 120 Amp

Blue Sea Systems 285-Series Circuit Breaker – Surface Mount 120A

Model: 7188-BSS

Features:

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Ignition protected – Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
• Weather Resistant
• Combines switching and circuit breaker function into one unit
• ”Trip Free” – cannot be held closed after trip

Do not use as a switch where high inrush currents are expected

Specifications

Amperage	120A
Maximum Voltage	48V DC
Mounting	Surface Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud Torque	50 in-lb (5.65 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40 degrees C
Maximum Operating Temperature	85 degrees C
Circuit Breaker Class	Type III – switchable/manual reset – trip free
Terminal Stud	M6 (accepts 1/4” Ring Terminal)
