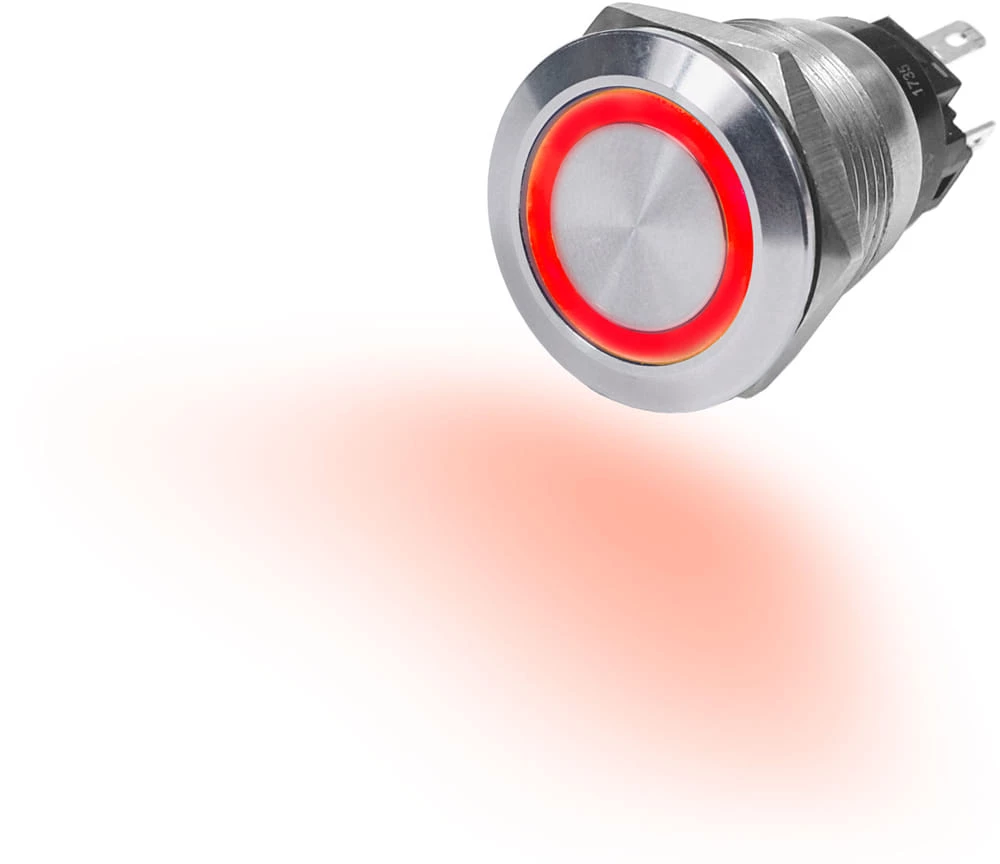

Blue Sea 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On

Blue Sea 10A Push Button LED Ring Switch Off-(On) Red – Momentary On

Model: 4163-BSS

Features:

• 10A continuous
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications

Action	OFF-(ON)- Momentary One
Amperage	10A @ 12V DC Resistive 3A @ 12V Inductive
Nominal Voltage	12V DC
Maximum LED Operating Current	20mA
Minimum Operating Temperature	-10 degrees C
Maximum Operating Temperature	70 degrees C
Minimum Storage Temperature	-55 degrees C
Maximum Storage Temperature	85 degrees C
Illumination	Independent — Separate contacts for LED power
Max Panel Thickness	0.31in (7.87 mm)
Mounting Hole	¾ (19mm)
Switching Cycles	40,000
Termination	5 — 0.110inch Quick Connect terminals
