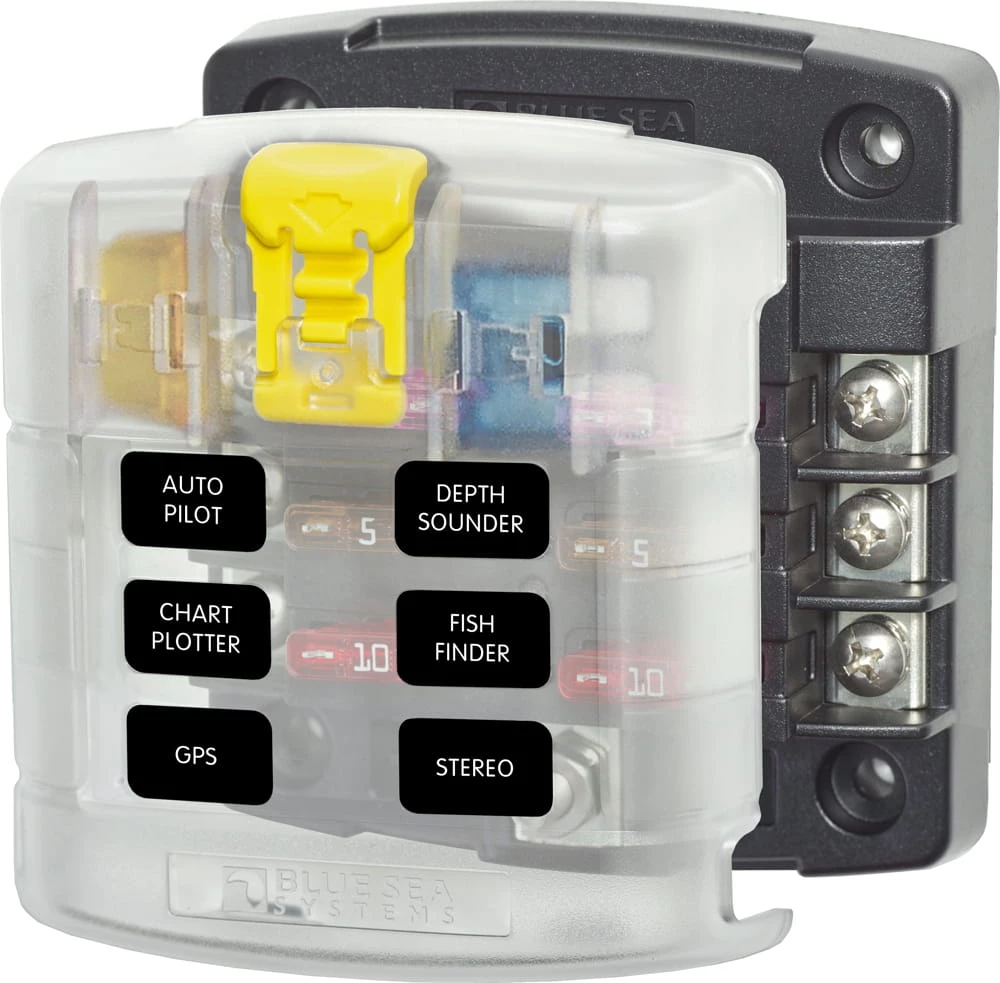

Blue Sea 5028 6-Gang Fuse Block ST ATO/ATC With Cover

Blue Sea Systems ST Blade Fuse Block – 6 Circuits with Cover

Model: 5028-BSS

Features:

• Positive distribution bus with #10-32 stud
• Can be used for 24-hour circuits
• Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
• Fuse blocks with covers include 20 write-on circuit labels
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO® and ATC® fast acting blade fuses
• Fuses sold separately

Specifications

Circuits	6
Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Positive Bus	#10-32 Stud
Recommended Torque	24 in-lb (2.71 N m)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Screws with captive star lock washer
