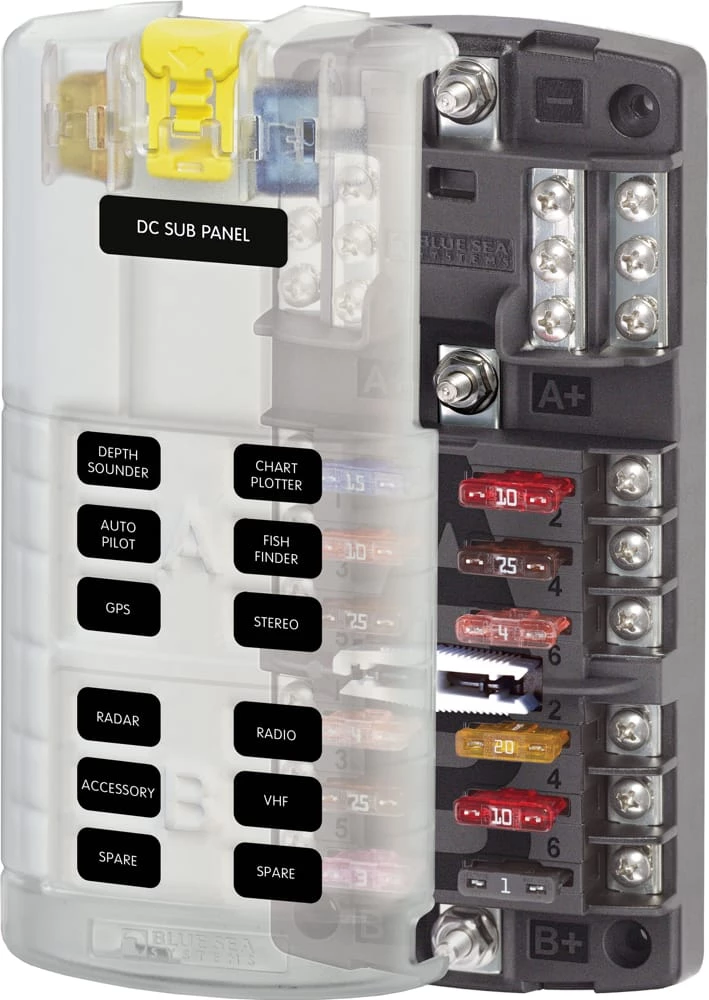

Blue Sea 5032 12-Gang 2-Group Fuse Block ST ATO/ATC Negative Bus And Cover

Blue Sea Systems ST Blade Split Bus Fuse Block 12 Circuits

Model: 5032

Features:

• Provides two isolated groups of six ATO®/ATC® circuits
• For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
• Screw terminals for securing wires accept ring terminals
• One-piece stainless flange nuts ensure safe and secure connections
• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
• Easy to open, push button latch for easy access to fuses
• Tin-plated copper buses and fuse clips
• Fuses sold separately

The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.

Specifications

Circuits	12
Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Negative Bus	#10-32 Stud
Positive Bus	#10-32 Stud
Recommended Torque	24 in-lb (2.71 N m)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Screws with captive star lock washer
Weight	0.75lb (0.25 kg)
Dimensions	6.472” h x 3.315” w x 1.518” d
