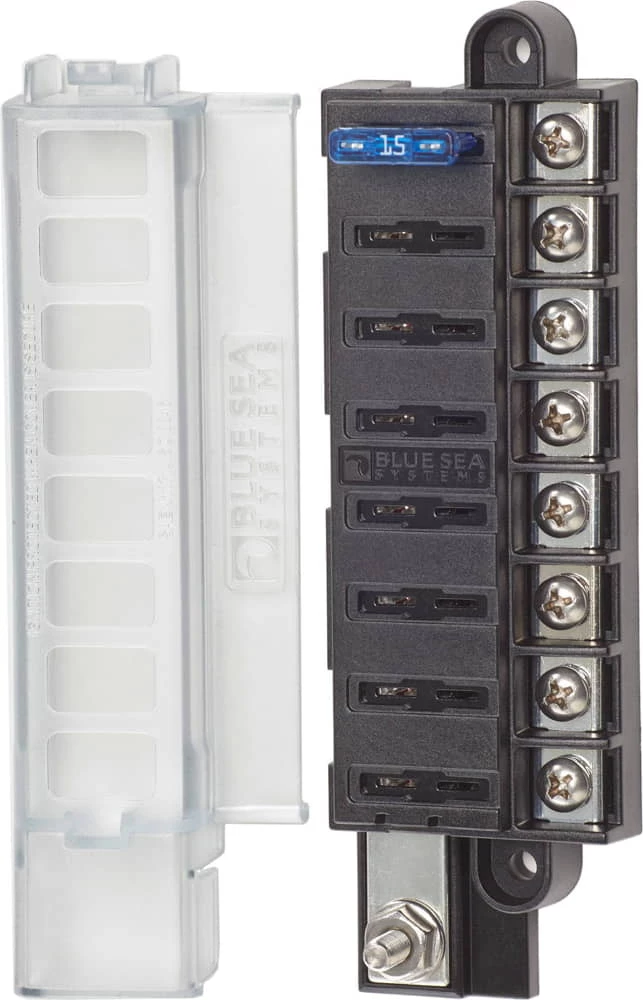

Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC With Cover

Blue Sea Systems ST Blade Compact Fuse Blocks – 8 Circuits

Model: 5046-BSS

Features:

• Ignition protected when cover is secure —meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Single side design allows wire entry from one side to minimize footprint
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Includes 8 write-on circuit labels
• Fuses sold separately

Specifications

Circuits	8
Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Terminal Stud Torque	24 in-lb (2.71 Nm)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Scews with captive star lock washer
Terminal Stud Size	#10-32
