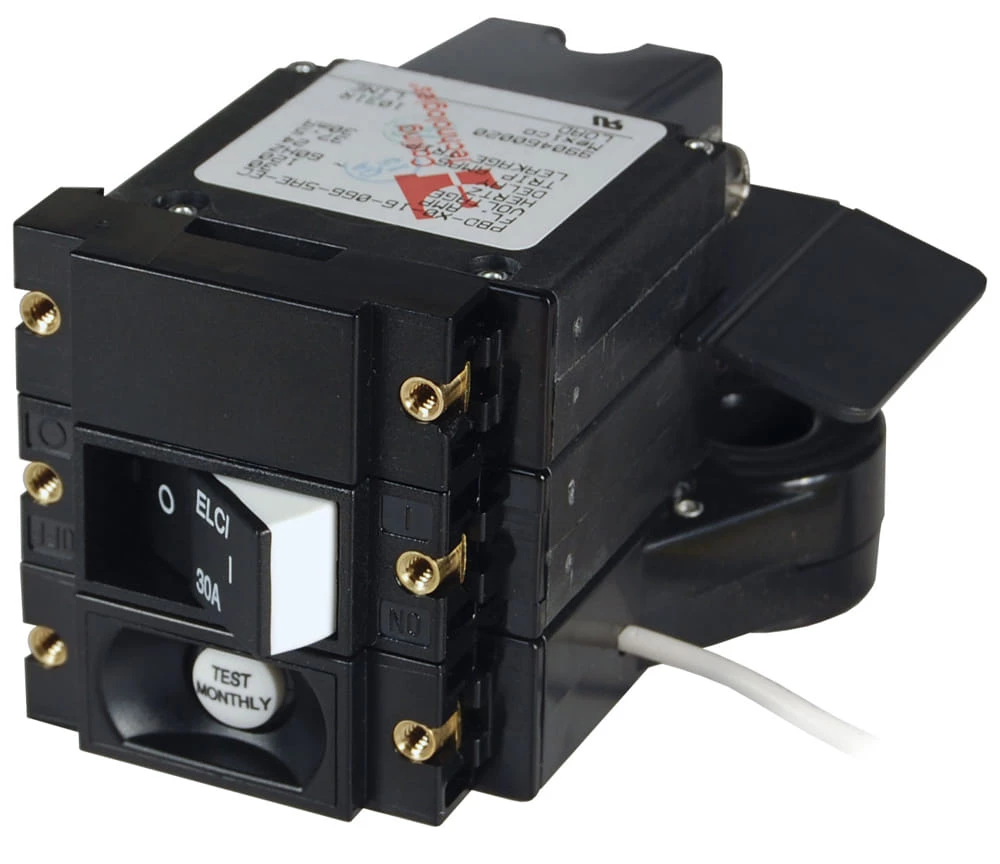

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker Flat Rocker

Blue Sea A-Series ELCI Main Circuit Breaker – Double Pole 120V AC 30A

Model: 3102100

Features:

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications

Amperage	30A
Actuator Style	Flat Rocker
Poles	2
Ignition Protected	Yes
Maximum Voltage	240V AC 120V AC per pole
Circuit Breaker Type	5000A
Minimum Operating Temperature	-35 degrees C
Maximum Operating Temperature	65 degrees C
Leakage Trip Amps	30mA
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10000
Weight	0.85lb (0.39 kg)
