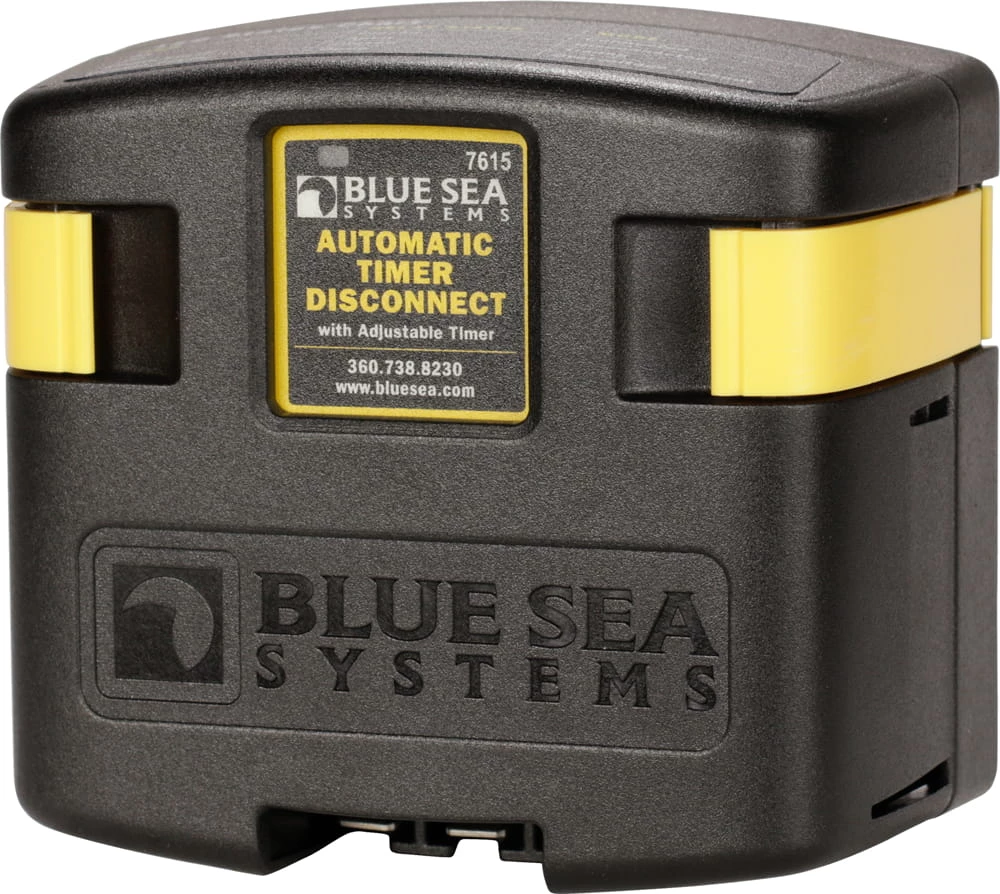

Blue Sea Automatic Timer Disconnect 12vDC

Blue Sea Systems

Model: 7615-BSS

Features:

• Timer Disconnect – 12V signal triggers relay to connect battery power to devices
• Timer Disconnect – When signal is removed the timer is activated and will disconnect devices after a preset time
• Timer Disconnect – Timer ranges from 15 minutes to 4 hours
• Low Voltage Disconnect -12V signal triggers relay to connect battery power to devices.
• After 12V signal is removed, device senses low battery voltage and automatically disconnects devices.
• Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power

Specifications

Nominal Voltage	12V DC
Amperage Operating Current	175mA (closed) 4mA (open)
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	120A
Intermittent Rating	210A (5 Min)
Cable Size to Meet Ratings	1 AWG (50mm )
Charge Sense Connect	13.0V (3 sec)
Charge Sense Disconnect	12.75V (10 sec)
Disconnect Time	5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2hr, or 4hr
Input Voltage Range	9.5-16V
Low Voltage Disconnect	11.0V (10 sec) 11.5V (10 sec) 12.0V (10 sec)
Maximum Cable Size	1/0 AWG (50mm )
Stud Material	Tinned Copper
Terminal Ring Diameter Clearance	1.12in (28.45 mm)
Terminal Stud Size	3/8”-16 (M10)
Over Voltage Lockout	16.0V (5 sec)
