Blue Sea BatteryLink Charger 12v Output 120/230V Input 20Amp 2 Bank

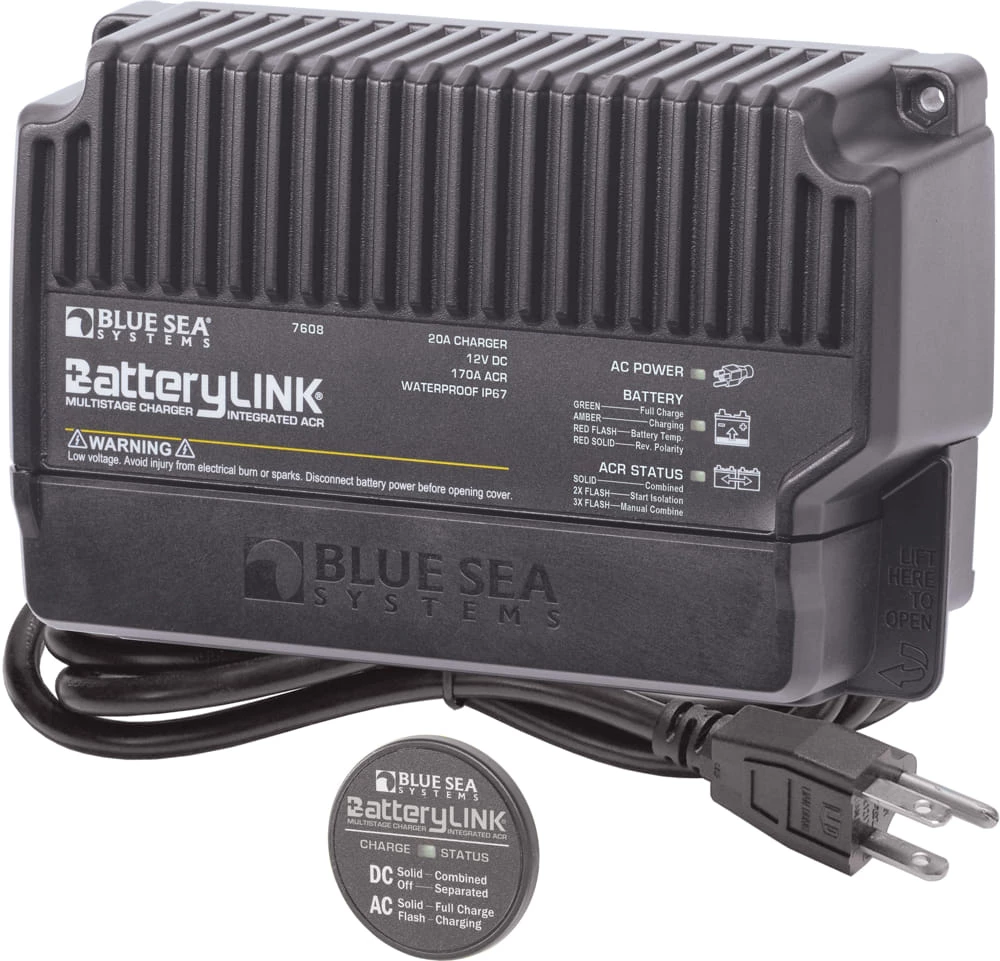

Blue Sea Systems 20A BatteryLink Charger

Model: 7608

Features:

• AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 20 Amp battery charger
• DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 170A ACR
• Battery Temperature Compensation prolongs battery life
• Start isolation protects sensitive electronics from voltage sags and spikes
• Emergency parallel allows remote ability to jump start by combining both batteries if start battery is low
• Includes LED remote indicator for charge status at the helm
• Snap-on insulating cover
• One-piece stainless flange nuts ensure safe and secure connections

Charge two batteries at or away from the dock with a 20A multistage battery charger and integrated 170A Automatic Charging Relay (ACR)

Specifications

Total Output Current	20A DC
Nominal Output Voltage	12V DC
ACR Continuous Rating	170A
Output Connections	1 Negative 2 Positive
Universal AC Input Voltage	100-240V AC
AC Input Frequency	50/60Hz
Typical Float Voltage	13.5V DC
Typical Absorption Voltage	14.4V DC
Operating Current (no AC power)	10mA
Plug Style	North American: NEMA 5-15P
Battery Types	AGM Flooded TPPL
Recommended Minimum Battery Capacity	100Ah (20h rate), Per bank
Recommended Maximum Battery Capacity	400Ah (20h rate), Total of both banks
Negative Terminal Stud Size	1/4”-20
Maximum 1/4” Terminal Stud Torque	60 in-lb (6.78 Nm)
Positive Terminal Stud Size	3/8”-16
Maximum 3/8” Terminal Stud Torque	140 in-lb (15.82 Nm)
ACR Combine Voltage	13.0V (2 min 13.5V (30 sec.)
ACR Open Voltage	12.75V (30 sec.) 12.35V if voltage is rising
Warranty	5 Year

What’s in the Box:

• 7608 BatteryLink 20A Charger
• Remote LED
• Temperature sensor
