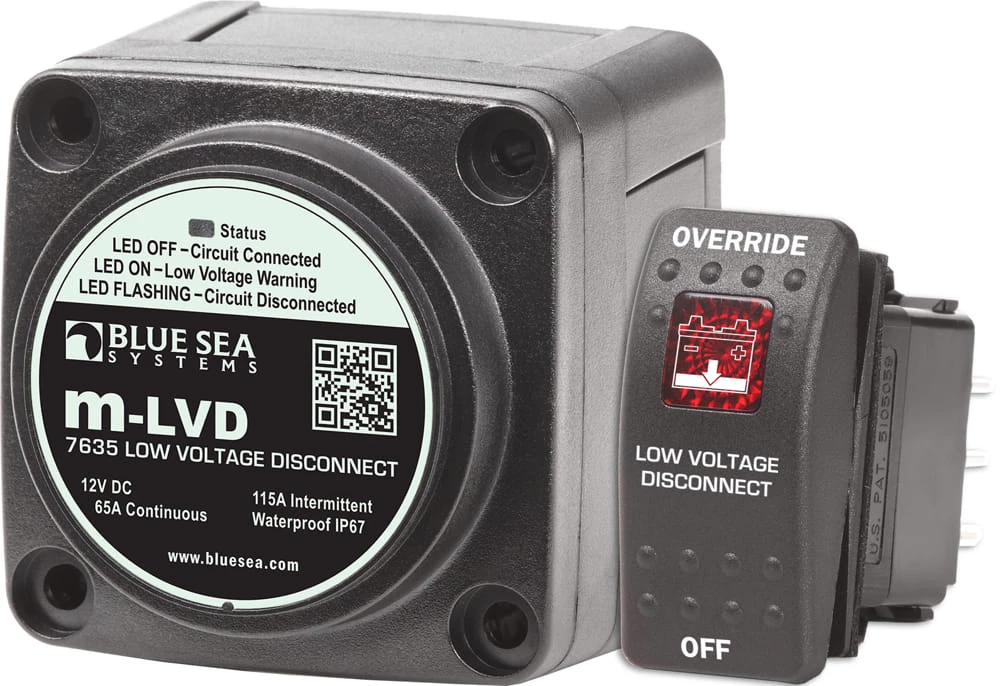

Blue Sea M-LVD Low Voltage Disconnect 12vDC

Blue Sea Systems m-LVD Low Voltage Disconnect

Model: 7635-BSS

Features:

• Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
• Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life

A dead battery is one of the most common reasons for a tow. Don’t get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

Specifications

Nominal Voltage	12V DC
Amperage Operating Current	95mA (Connected) 4mA (Open)
Terminal Stud Torque	60 in-lb (6.78 Nm)
Continuous Rating	65A
Intermittent Rating	115A (5 Min)
Maximum Cable Size	1/0 AWG (50mm2)
Stud Material	Tinned Brass
Terminal Stud Length	7/16 in (11.11 mm)
7/16 in (11.11 mm)	1/4” – 20 (M6)

What’s in the Box:

• M-LVD Low Voltage Disconnect
• m-LVD Switch
