Blue Sea M-Series Automatic Charging Relay 12/24vDC 65A

Blue Sea Systems m-Series Automatic Charging Relay – 12/24V DC 65A

Model: 7601-BSS

Features:

• Senses charging on two battery banks
• Pull off and snap on insulating cover
• LED indicates ACR status
• 1 ?4” x .032” male quick connect terminal for ground

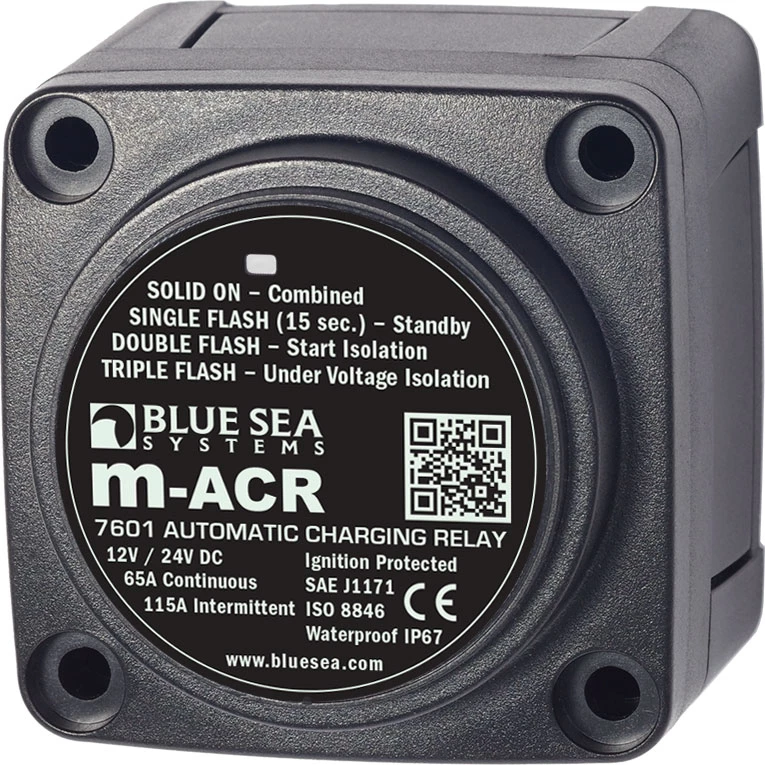

The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.

Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes.

The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.

Specifications

Nominal Voltage	12V DC 24V DC
Start Isolation	Yes
Amperage Operating Current	90mA (Combine) 15mA (Open)
Terminal Stud Torque	60 in-lb (6.78 Nm)
Continuous Rating	65A
Intermittent Rating	115A (5 min)
Cable Size to Meet Ratings	6 AWG
Maximum Cable Size	1/0 AWG
Stud Material	Tinned Brass
Terminal Stud Size	1/4” – 20 (M6)
Relay Contact Position
Combine 30 sec	13.6V DC
Open 10 sec	12.35V DC
Open 30 sec	12.75V DC
Open High	16.0V
Under Voltage Lockout	9.5V
