Blue Sea M-Series Battery Switch On/Off/ Dual Circuit

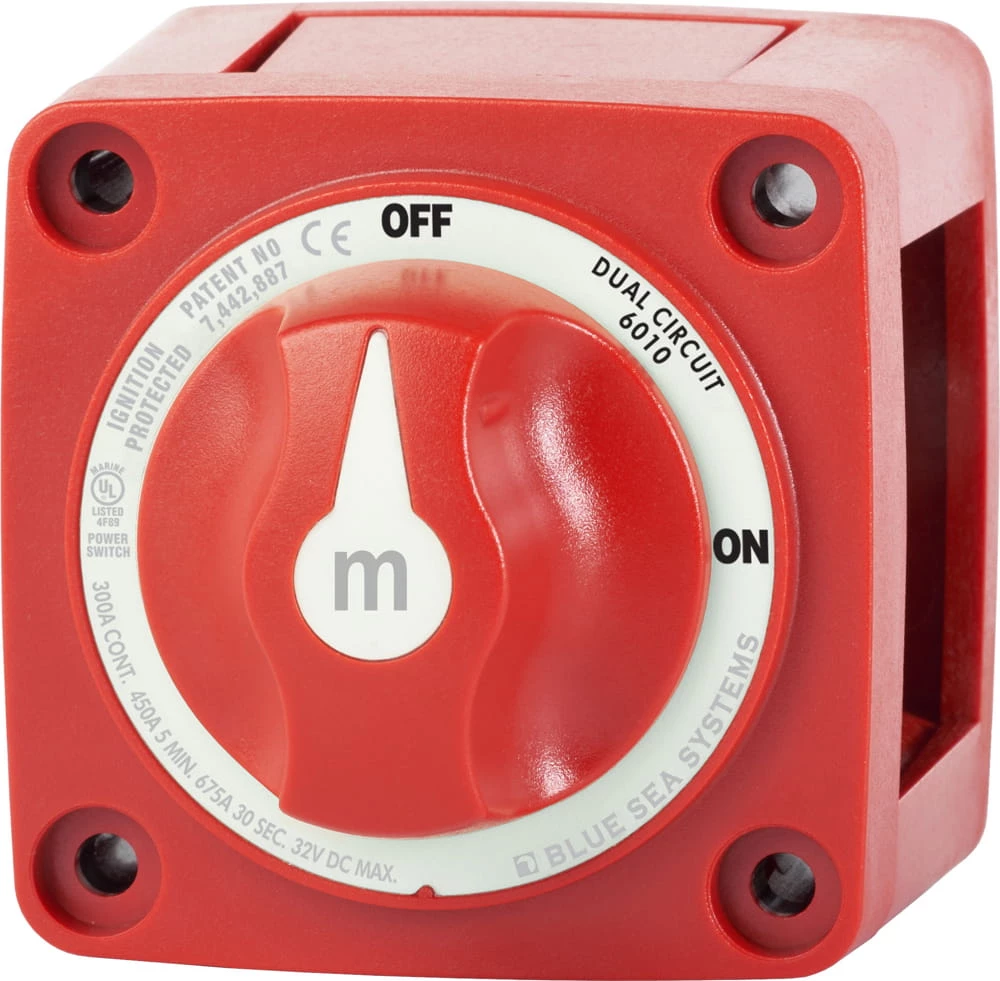

Blue Sea Systems m-Series Mini Dual Circuit Battery Switch – Red

Model: 6010-BSS

Features:

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8” (M10) ring terminals
• 7/8” (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Isolating cover with snap-on sections protects rear contacts
• Case design allows surface or rear panel mounting
• Waterproof — rated IP66 from water projected in powerful jets
• One-piece stainless flange nuts ensure safe and secure connections
• Breakout tabs allow wire access in any direction

Simultaneously switches two isolated battery banks

Specifications

Switch Type	Dual Circuit
Color	Red
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32vDC
Stud Size	3/8”
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating 30 sec	675A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm )
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8” – 16 (M10)
