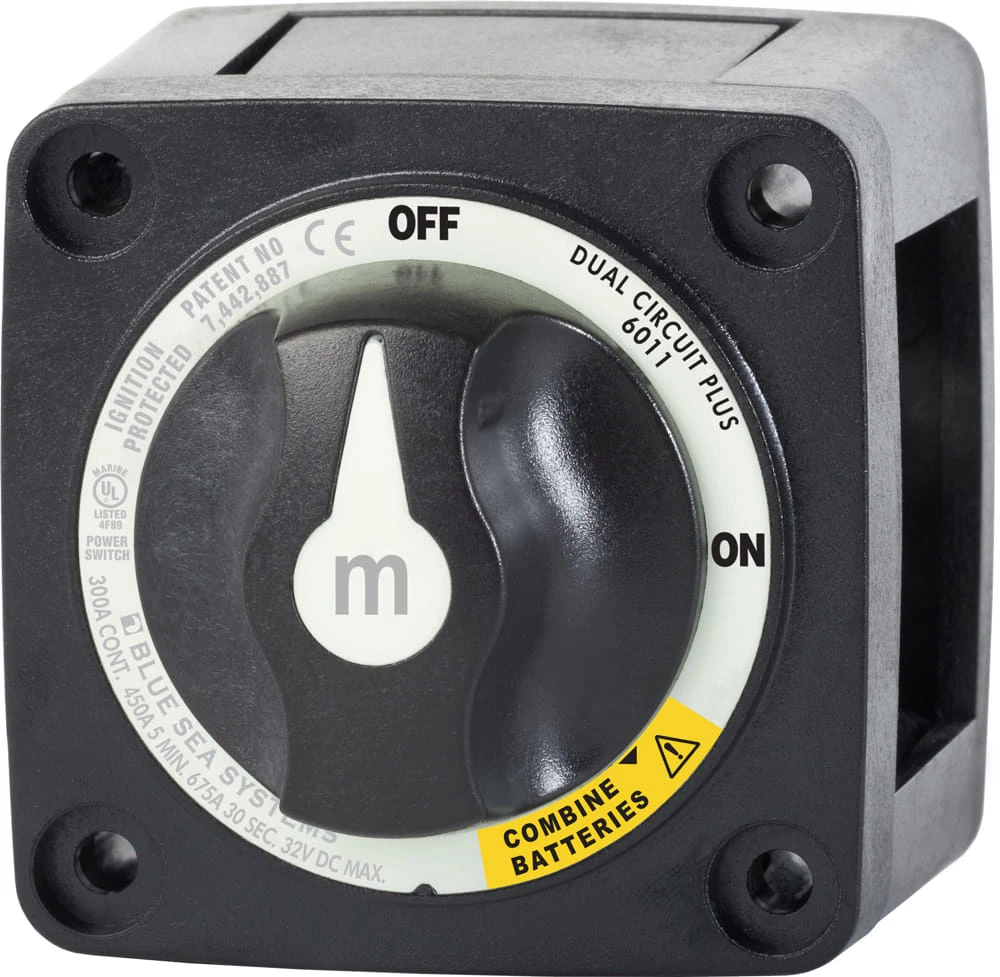

Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus Black

Blue Sea Systems m-Series Mini Dual Circuit Plus Battery Switch – Black

Model: 6011200-BSS

Features:

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8” (M10) ring terminals
• 7/8” (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Isolating cover with snap-on sections protects rear contacts
• Case design allows surface or rear panel mounting
• Waterproof — rated IP66 from water projected in powerful jets
• One-piece stainless flange nuts ensure safe and secure connections
• Breakout tabs allow wire access in any direction
• Make before break contact design allows switching between battery banks without power interruption

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Specifications

Switch Type	Dual Circuit Plus
Color	Black
Switch Positions	3
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32vDC
Stud Size	3/8”
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating 30 sec	675A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm )
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8” – 16 (M10)
