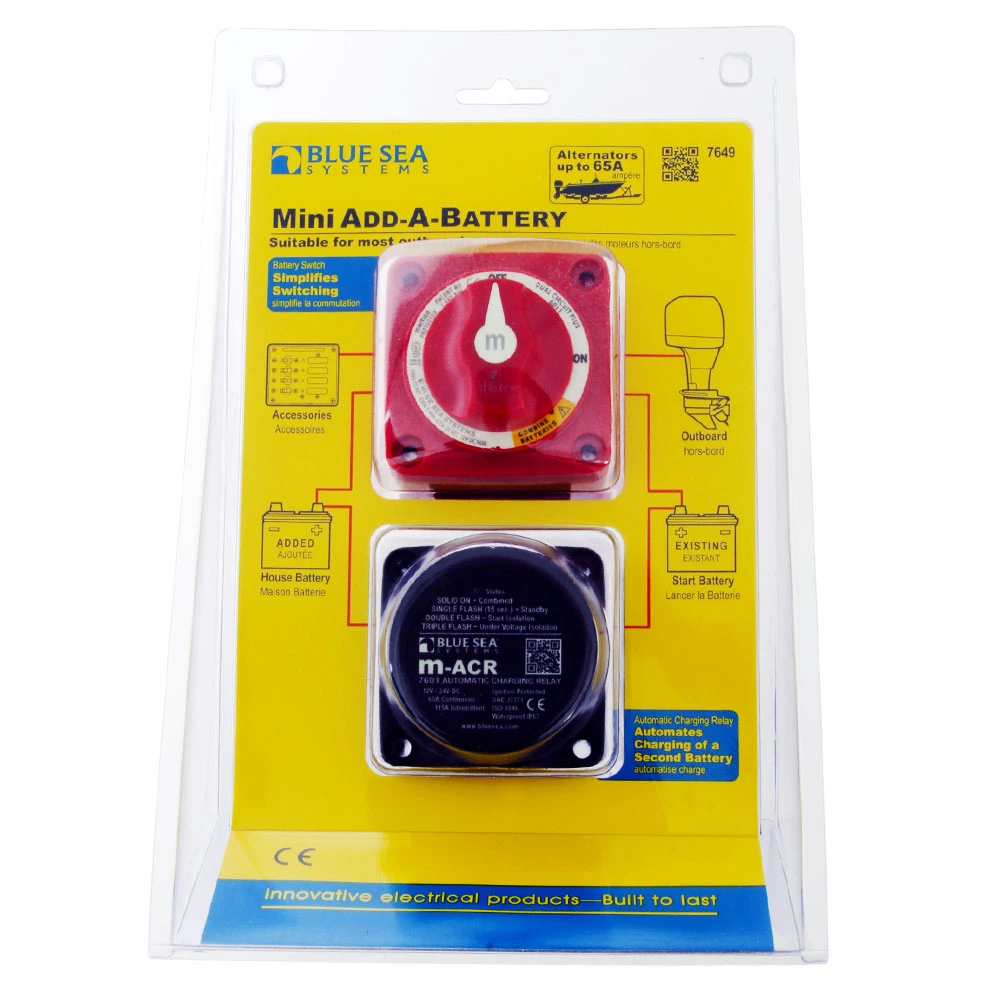

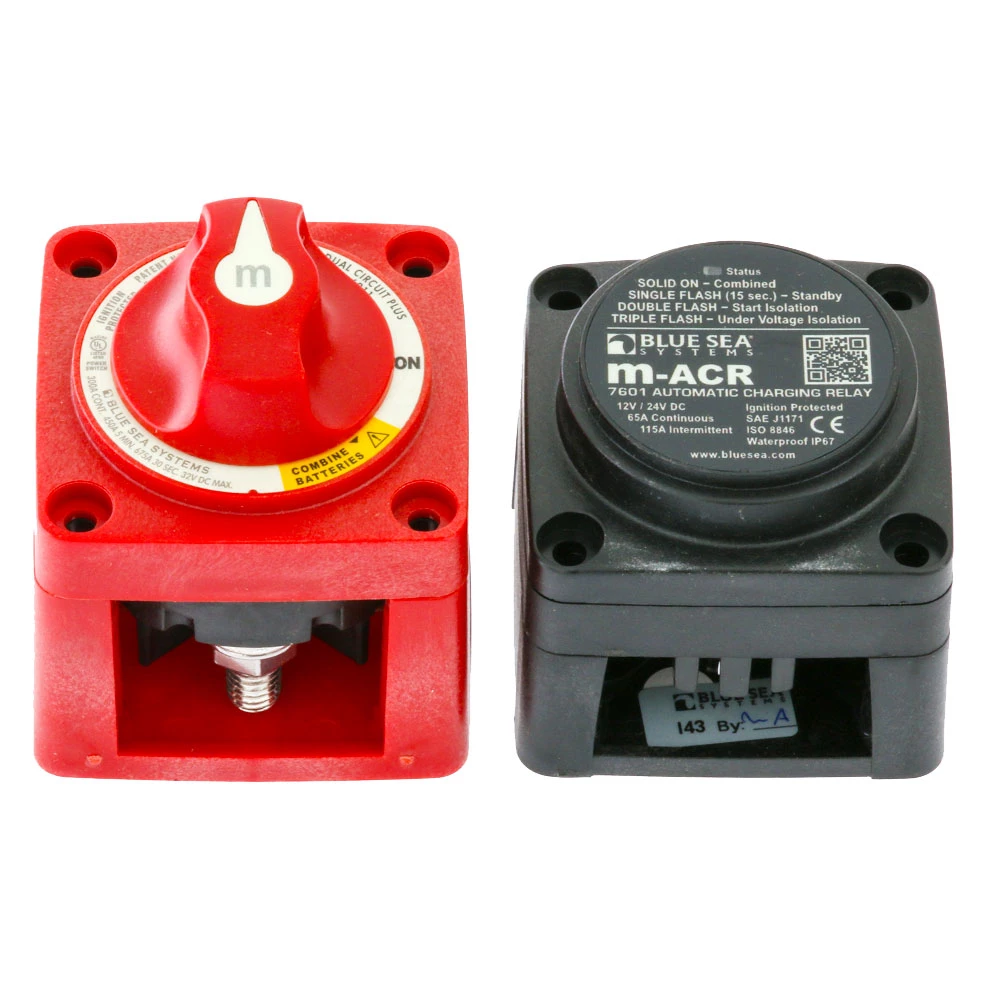

Blue Sea Mini Add-A-Battery Switch And Charging Relay Kit 65A

Simplifies switching and automates charging of a second
battery

The mini version of the Add-A-Battery ideal for smaller boats with
smaller alternators, the Blue Sea Mini Add-A-Battery Switch
and Charging Relay Kit is as simple to operate as an
On-Off switch, yet effectively manages the switching and charging
of two batteries from a single charge source. This kit includes a
Dual Circuit Plus Battery Switch and an Automatic Charging Relay.
These components simplify switching and automate charging, so that
all you have to do is turn the battery switch ON when you arrive
and OFF when you leave.

Blue Sea Mini Add-A-Battery Kit Features:

• For alternators up to 65A
• Suitable for most outboards

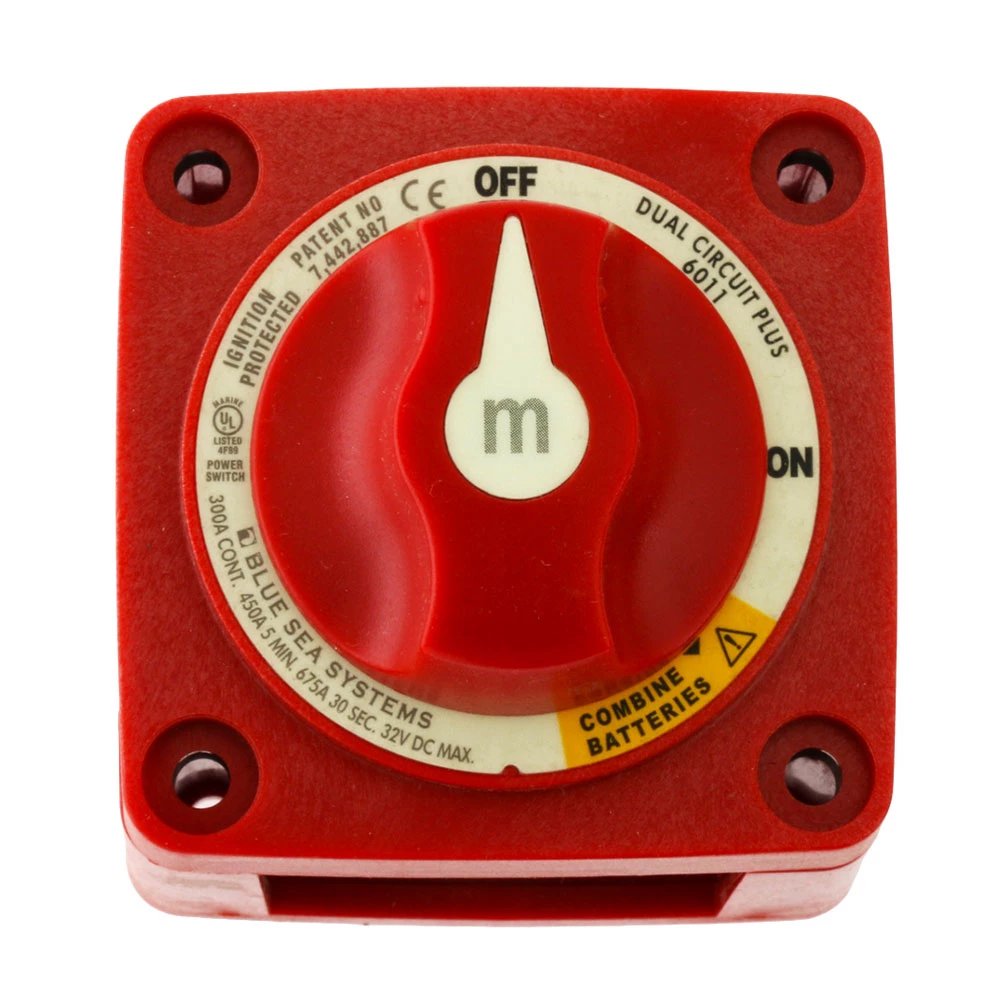

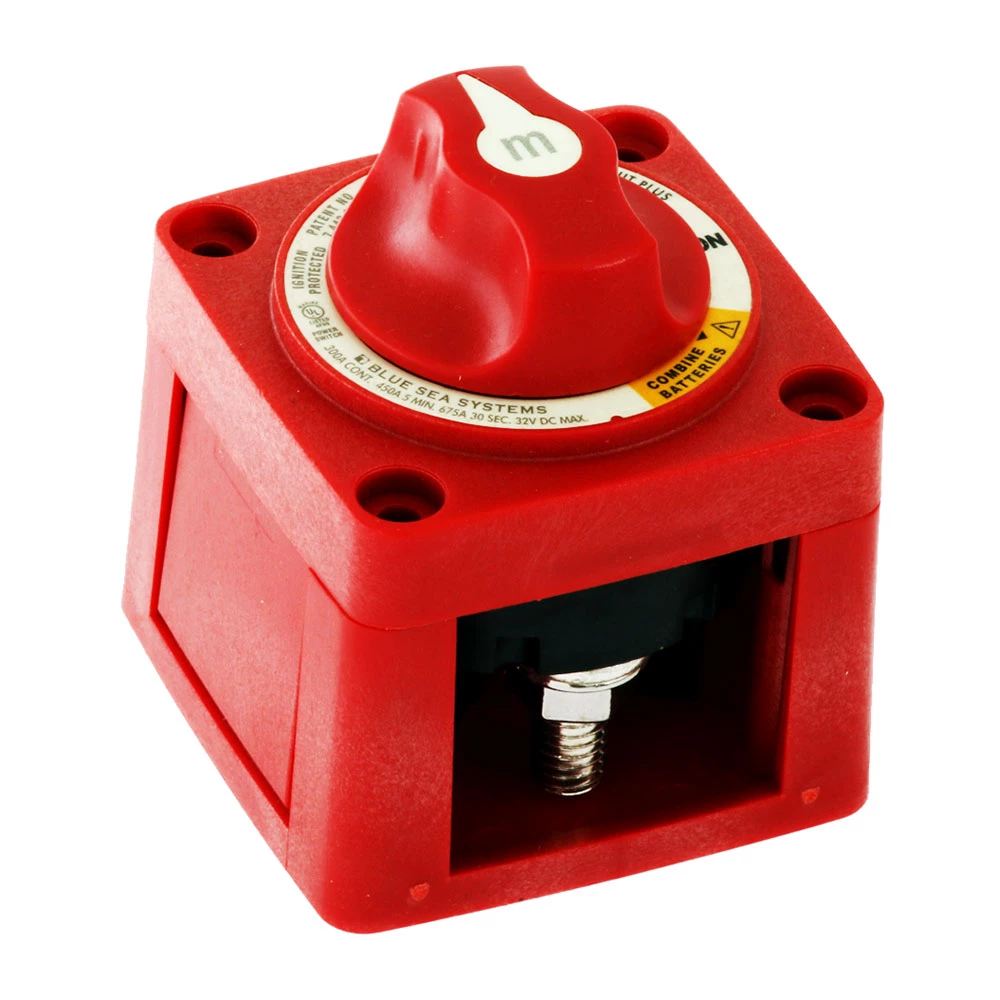

Dual Circuit Plus Battery Switch Features:

• Simplifies switching
• Isolates engine and house circuits
• Combines batteries for emergency starting
• Tin-plated copper studs for maximum conductivity and corrosion
  resistance

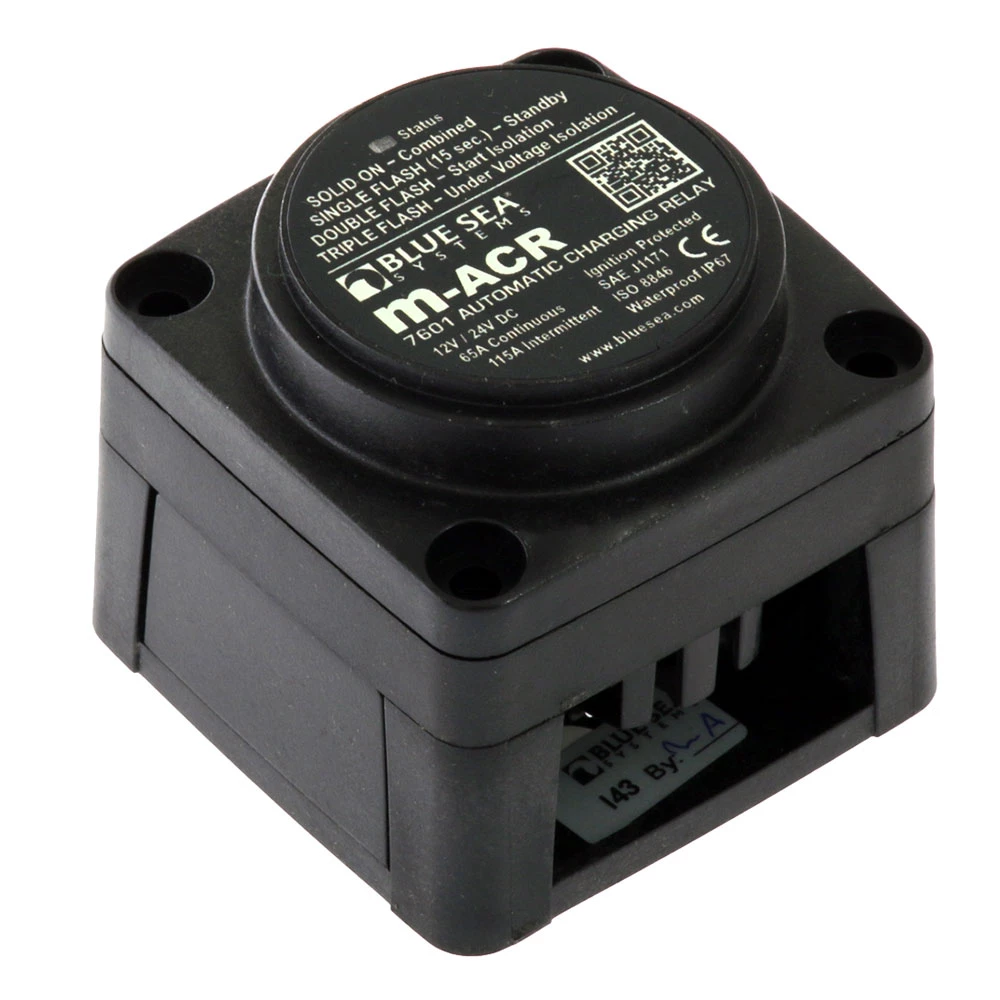

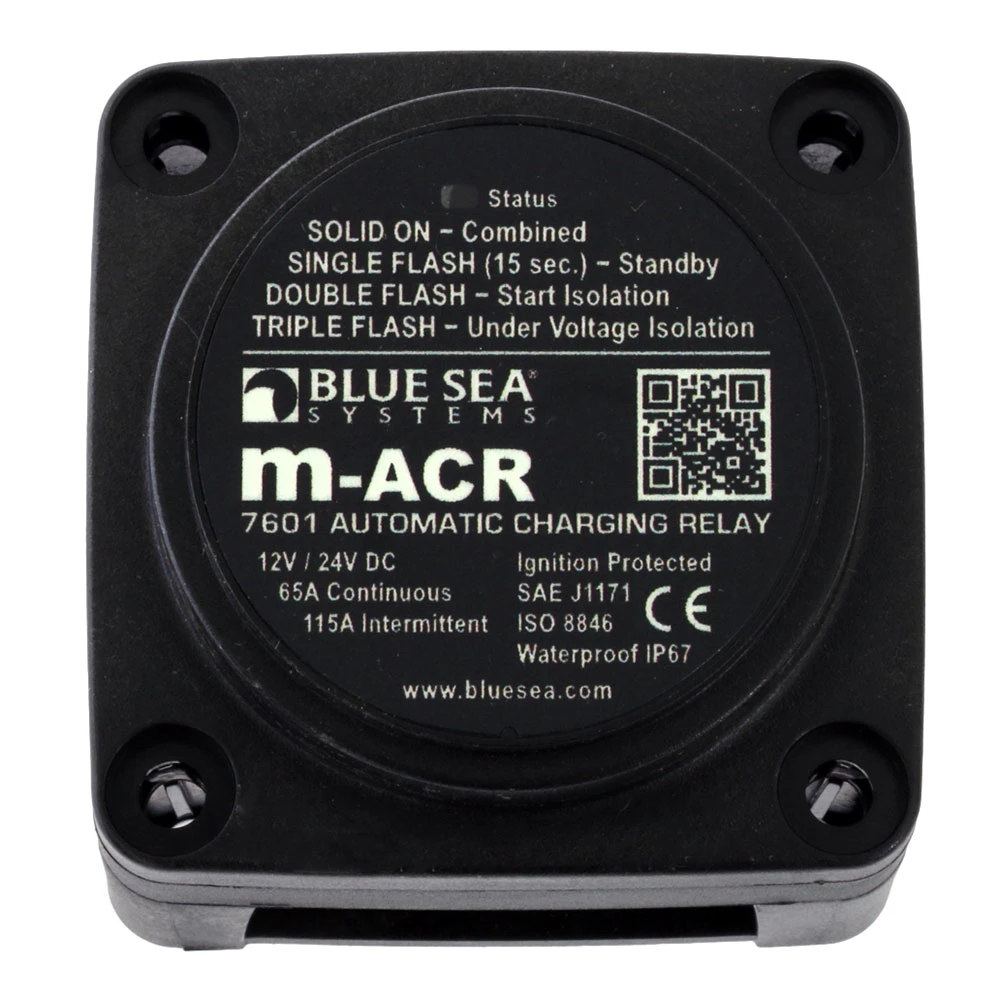

ACR Automatic Charging Relay Features:

• Automatically combines batteries during charging
• Isolates batteries during engine cranking and when not
  charging
• Shares the charge between two batteries more efficiently than a
  battery isolator
• Allows efficient dual battery charging without needing
  regulator adjustment or rewiring

Blue Sea Mini Add-A-Battery Kit
Specifications:

• Amperage: 65A
• Weight: 1.00lb (0.45 kg)

Blue Sea Mini Add-A-Battery Kit Dimensions Chart

Blue Sea Mini Add-A-Battery Kit Installation Manual
