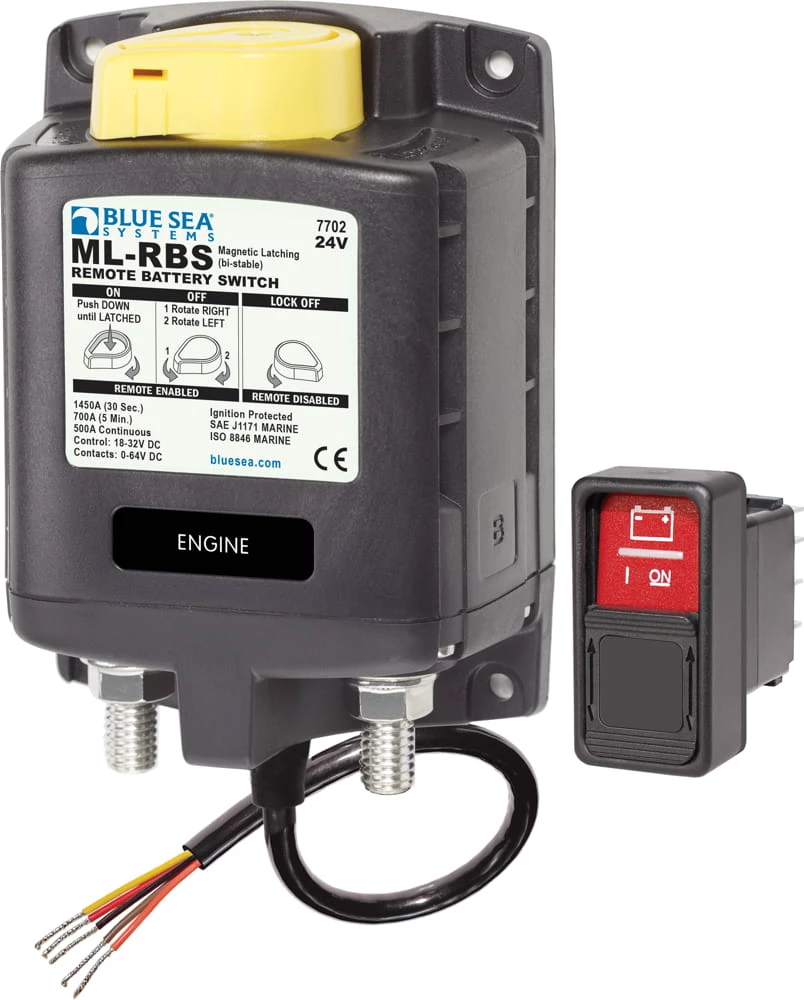

Blue Sea ML-RBS 24vDC 500A Remote Battery Switch With Manual Control

Blue Sea ML-RBS Remote Battery Switch with Manual Control – 24V DC 500A

Model: 7702-BSS

Features:

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state – requires optional LED
• 3? 8”-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7? 8” (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

Specifications

Control Circuit Voltage	18-32V DC
Control Circuit Connection	Tinned Wire
Nominal Voltage	24V DC
Manual Control	Yes
Coil Function	Bi-Stable
Amperage Operating Current	0mA
Amperage Operating Current when changing state
Continuous Rating	500A
Intermittent Rating	700A – 5 minutes
Cranking Rating 30 sec	1450A DC
Minimum Operating Temperature	-10 degrees C
Maximum Operating Temperature	60 degrees C
Cable Size to Meet Ratings	2x (4/0)
Live Current Switching	300A @ 12V DC, 150A @ 24V DC
Master Control Switch Capability	No
Mechanical Endurance	100,000 Cycles
Terminal Ring Diameter Clearance	1.18in (29.97 mm)
Terminal Stud Length	0.875in (22.23 mm)
Terminal Stud Size	3/8” – 16 (M10)
Weight	2.05lb (0.93 kg)
