Blue Sea ML-RBS Remote Battery Switch With Manual Control 12VDC 500A

High amperage switching under load

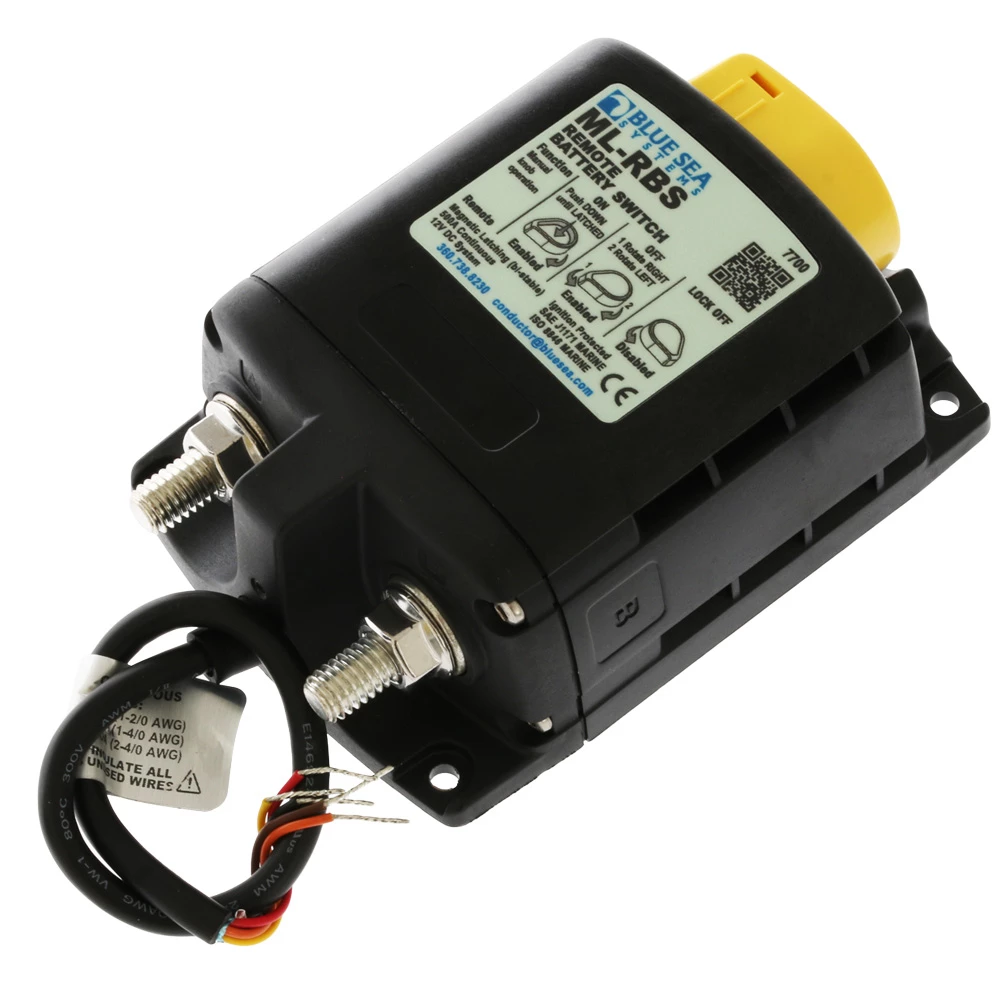

The Blue Sea ML-RBS Remote Battery Switch with Manual
Control is a 500 Amp magnetic switch that provides high
amperage switching under load, manually or from remote locations.

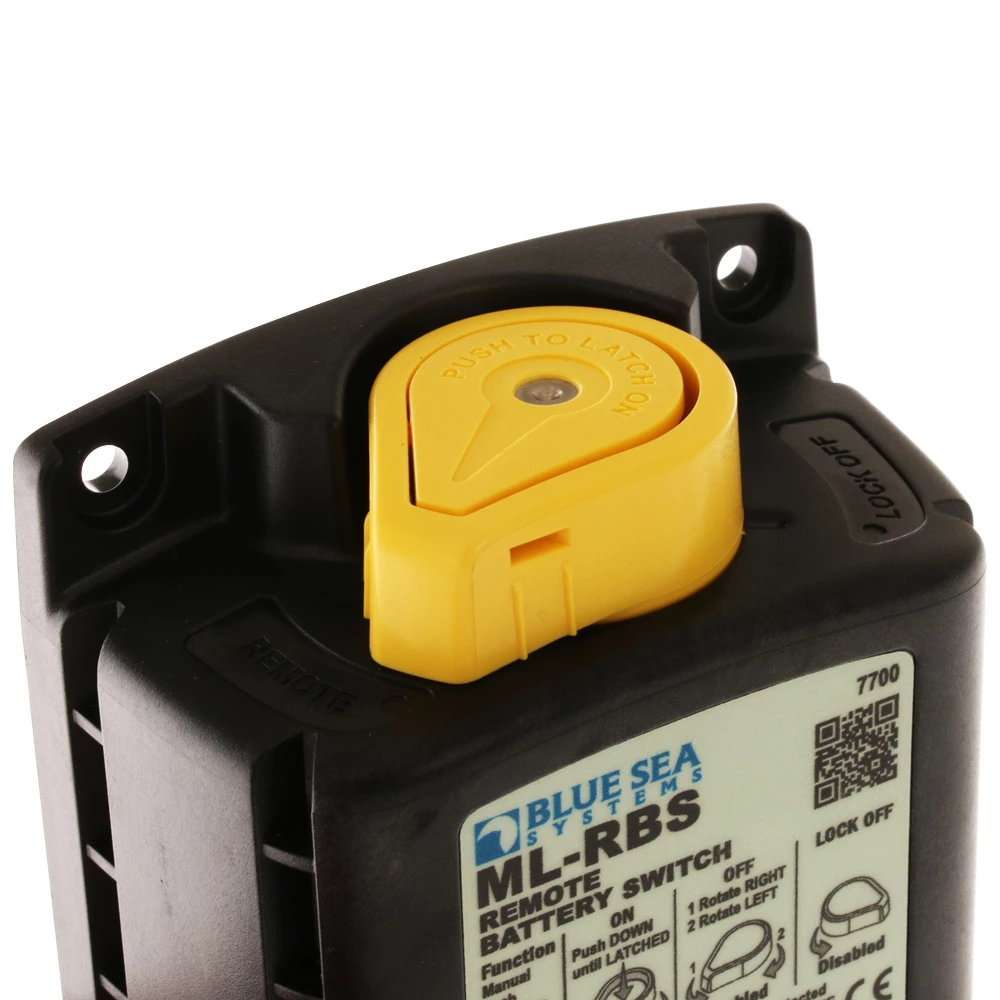

The manual override knob provides an added level of safety allowing
control with or without power and offering LOCKED OFF capability
for servicing.

Blue Sea ML-RBS Remote Battery Switch with Manual Control
Features:

• Manual override knob provides an added level of safety allowing
  control with or without power and offering LOCKED OFF capability
  for servicing
• 3∕ 8″-16 tin-plated copper studs for maximum conductivity and
  corrosion resistance
• 7∕ 8″ (22 mm) stud length accepts multiple cable
  terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching
  live loads

Blue Sea ML-RBS Remote Battery Switch with Manual Control

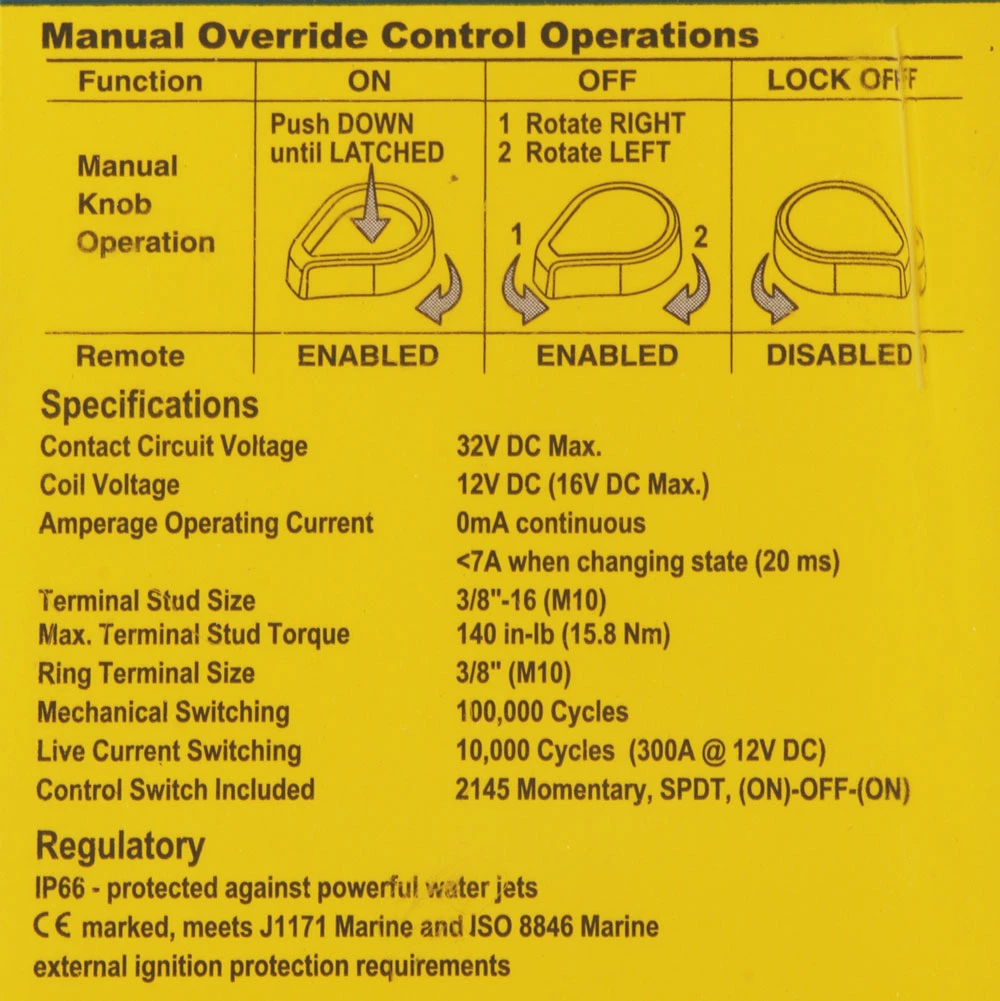

Specfications:

• Control Circuit Connection: Tinned Wire
• Nominal Voltage: 12V DC
• Manual Control: Yes
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current: 0mA
• Amperage Operating Current when changing state: <7A (40
  ms)
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Control Circuit Voltage: 10.1 to 16.5V DC
• Continuous Rating: 500A
• Intermittent Rating: 700A (5min)
• Cranking Rating 30 sec: 1450A DC
• Minimum Operating Temperature: -10°C
• Maximum Operating Temperature: 60° C
• Cable Size to Meet Ratings: 2x (4/0)
• Live Current Switching: 300A @ 12V DC
• Master Control Switch Capability: No
• Mechanical Endurance: 100,000 Cycles
• Terminal Ring Diameter Clearance: 1.18in (29.97mm)
• Terminal Stud Length: 0.875in (22.23mm)
• Terminal Stud Size: 3/8″ – 16 (M10)
• Weight: 2.05lb (0.95kg)

Blue Sea ML-RBS Remote Battery Switch with Manual Control
Dimensions Chart

Blue Sea ML-RBS Remote Battery Switch with Manual Control
Installation Manual
