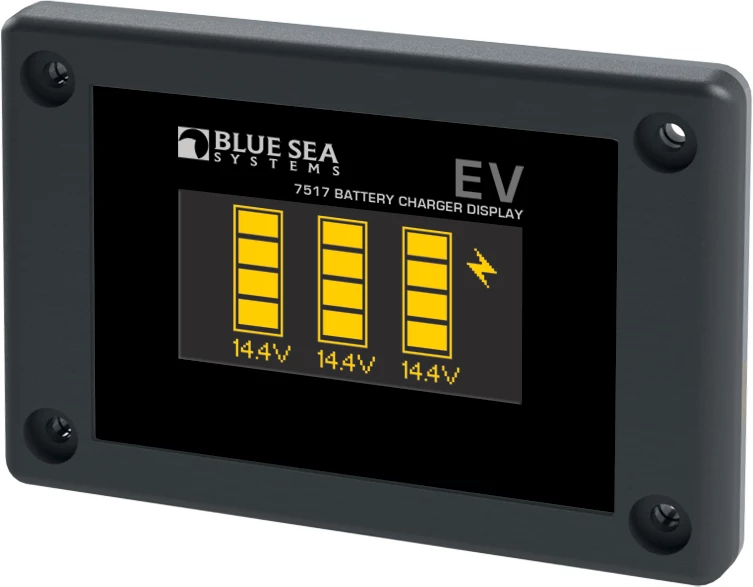

Blue Sea OLED Remote For P12 Battery Chargers

Blue Sea EV Battery Charger Display

Model: 7517-BSS

Features:

• Drop in replacement for traditional rectangular displays
• Automatically detects 1-3 battery banks
• AC charge indication verifies that power is connected and the battery charger is charging
• Plain language fault indication relays if there is a fault with the battery charger
• Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
• Displays voltage bar graphs even when AC power is not present
• Optional standby mode shuts off screen after 4 hours of inactivity
• Automatic ON based on motion with integrated knock sensor
• Bright, daylight readable, OLED display

The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger’s Summary screen, displaying voltage, current charging stage, and faults from the charger.

Specifications

Accuracy	+/- 1% at 36 Volts DC
Battery Inputs	3 with common reference
Display Size	55mm x 28mm
Display Type	Yellow OLED
Input Voltage Range	6-36V DC
Maximum Current Draw	50mA
Minimum Current Draw

What’s in the Box:

• EV Battery Charger Display
• Mounting Gasket
• Four Position Connector
• 25ft (7.8m) Cat5e Cable
