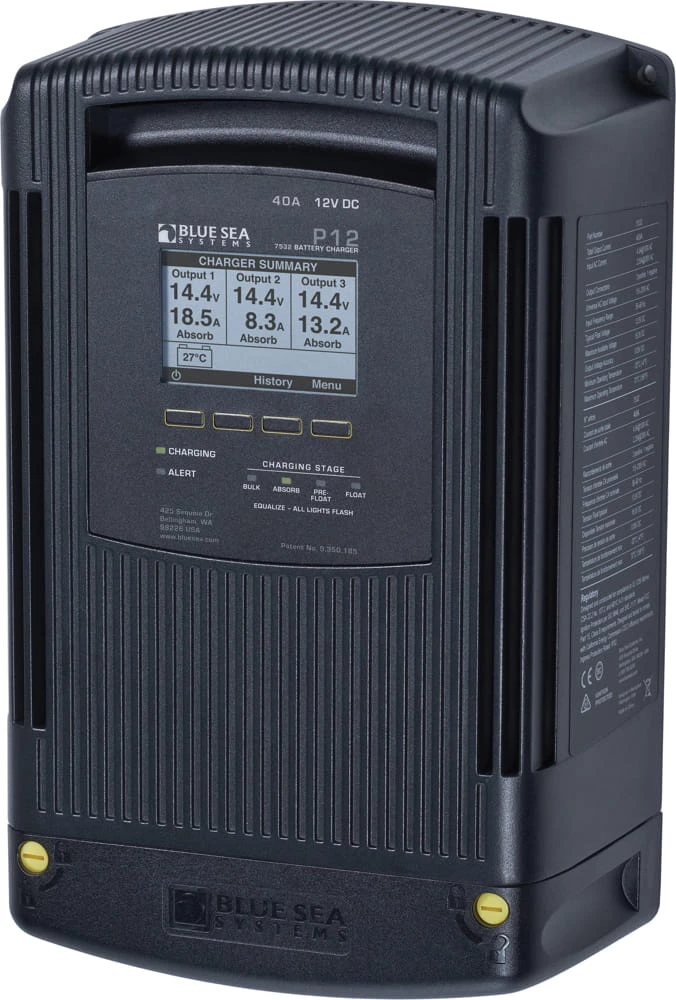

Blue Sea P12 Battery Charger 12v Output 120/230V Input 40Amp 3 Bank

Blue Sea Systems P12 40A 12vDC Battery Charger

Model: 7532-BSS

Features:

• Rugged, finned aluminum case
• Rugged, finned aluminum case
• Power factor corrected for efficient use of AC
• Intuitive diagnostic screens
• User defined charge profiles and customizable settings
• Provides charging for up to three battery banks
• Large, bright display
• Multi-language: English, French, German, Italian, Spanish
• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
• Battery Temperature Compensation – adjusts charge voltage based on battery temperature
• AC over and under voltage shut down and automatic restart
• Over and under battery temperature protection – charger will not operate if battery temperature rises above or falls below a set value
• DC over voltage and reverse polarity protection
• Surge and short circuit protection

Specifications

Total Output Current	40A
Input AC Current	7.5A @ 100V A
Maximum Output Voltage	16V DC
Nominal Voltage	12V DC
Ignition Protected	Yes
Number of Outputs	1 negative 3 positive
Stud Size	M6
Universal AC Input Voltage	115-230V AC
AC Input Frequency	45-65Hz
Output Voltage Accuracy	0.05V
Typical Float Voltage	13.5V DC
Maximum Operating Temperature	70 degrees C
Minimum Storage Temperature	-30 degrees C
Maximum Storage Temperature	80 degrees C
Battery Types	AGM Flooded Lead Acid Gel TPPL
Recommended for Battery Bank Sizes	330Ah Maximum 60Ah Minimum
Screw Terminal Torque	10 in-lb (1.13 Nm) M3 15 in-lb (1.69 Nm) M4
Stud Torque	80 in-lb (9.04 Nm)
Dimension H x W x D	13.03in x 8.46in x 3.66in
Warranty	5 Year

What’s in the Box:

• P12 40A Charger
• Mounting hardware
• Ac Strain Releif
• DC Strain relief
• Temperaur Sensor
• Dielectric Grease
