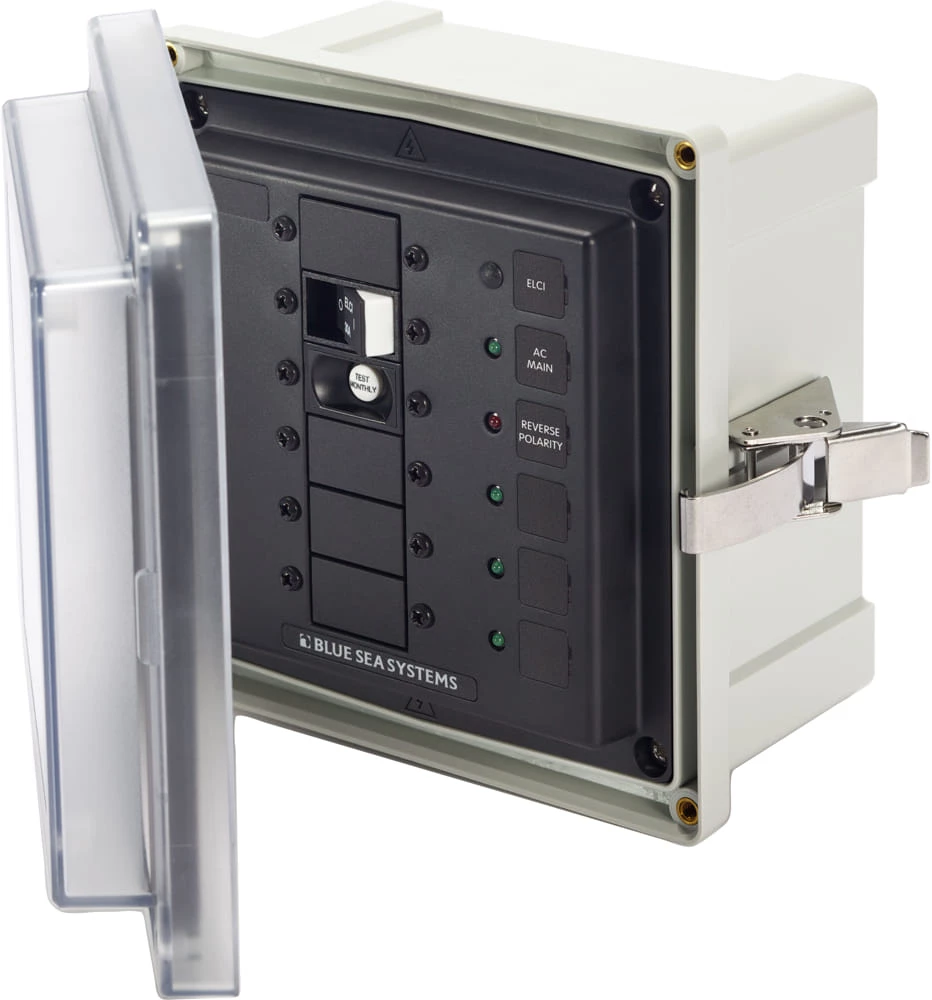

Blue Sea Panel Enclosure 120v AC 30A ELCI Main Surface Mount System

Blue Sea SMS Surface Mount System Panel Enclosure – 120V AC / 30A ELCI Main – 3 blank circuit positions

Model: 3116-BSS

Features:

• Includes one 120V AC / 30A ELCI Main and three blank positions
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Glass filled polycarbonate mounting box
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications

Minimum Operating Temperature	-40 degrees C
Maximum Operating Temperature	85 degrees C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0” x 6.0” x 4.0”
Exterior Overall Dimensions	7.6” x 7.4” x 4.7”
Mounting Hardware	1/4” Diameter, #12 (6 mm)

What’s in the Box:

• SMS Enclosure
• # 3124 Gland for #14-10 wire x 2
• #3125 Gland for #14-10(3 Conductor) wire x 3
• #4206 AC Label Kit
• AC Main Label
• ELCI Label
• 310210 ELCI Breaker 120 VAC 30A
• # 8034 LED – 120V AC Green (ON Indicating) x 4
• # 8066 LED – 120V AC Red (Reverse Polarity Indicating)
