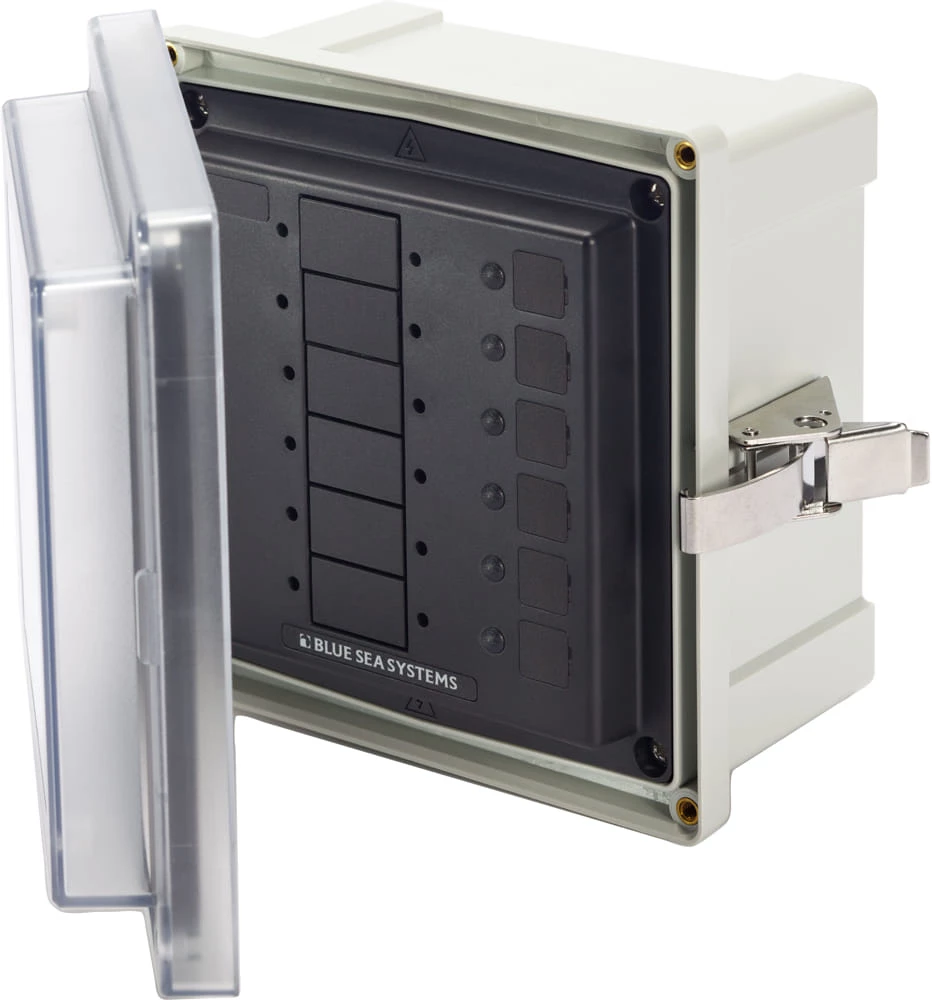

Blue Sea Panel Enclosure 6 Blank Circuits Surface Mount System

Blue Sea SMS Surface Mount System Panel Enclosure – 6 Circuit Blank

Model: 3113-BSS

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included

Specifications

Minimum Operating Temperature	-40 degrees C
Maximum Operating Temperature	85 degrees C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0” x 6.0” x 4.0”
Exterior Overall Dimensions	7.6” x 7.4” x 4.7”
Mounting Hardware	1/4” Diameter, #12 (6 mm)
Weight	7.00lb (3.18 kg)

What’s in the Box:

• SMS Panel Enclosure
• 6 LED plugs
• 12 circuit breaker mounting screws
• 30 Basic DC labels, 4205
• 30 Basic AC labels, 4206
• Panel Voltage ID labels 12V DC, 24V DC ,120V AC, 230V AC, 120/240V AC
