Blue Sea Panel Enclosure Dual 120v AC 30A ELCI Main Surface Mount System

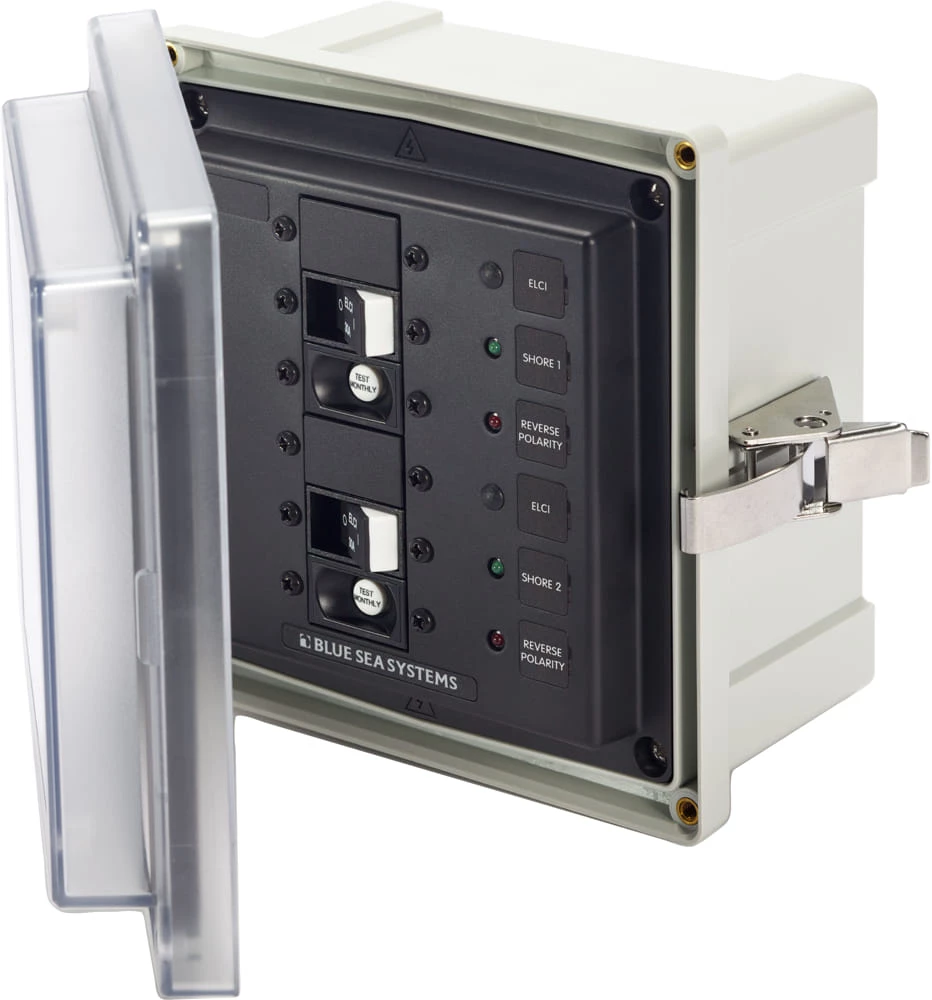

Blue Sea SMS Surface Mount System Panel Enclosure – 2 x 120V AC / 30A ELCI Main

Model: 3117-BSS

Features:

• Includes one Dual 120V AC / 30A ELCI Main
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications

Minimum Operating Temperature	-40 degrees C
Maximum Operating Temperature	85 degrees C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0” x 6.0” x 4.0” (152mm x 152mm x 102mm)
Exterior Overall Dimensions	7.6” x 7.4” x 4.7” (192mm x 188mm x 120mm)
Mounting Hardware	1/4” Diameter, #12 (6 mm)
Weight	7.00lb (3.18 kg)

What’s in the Box:

• SMS Panel Enclosure
• ELCI Main 120V 30A, 30mA, 3102 x 2
• small wire glands, 3124 x 2
• medium wire glands, 3125 x 4
• green ON indicating 120V AC LEDs, 8034 x 2
• red Reverse Polarity indicating 120V AC LEDs, 8066 x 2
• LED plugs x 2
• circuit breaker mounting screws x 12
• backlit circuit label positions x 6
• Source Selection Label Set (10 labels)
• Reverse Polarity labels x 2
• ELCI labels x 2
• Panel Voltage ID label-120V AC
