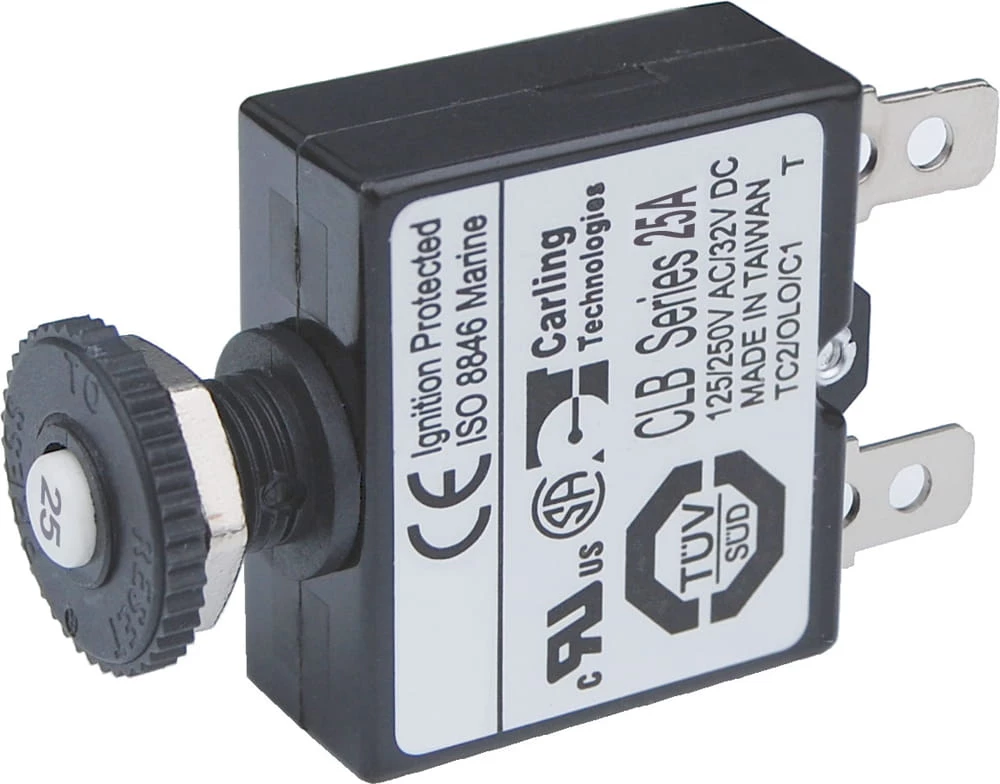

Blue Sea Push Button Reset Only Quick Connect Circuit Breaker – 25 Amps

Blue Sea Push Button Reset Only Quick Connect Circuit Breaker – 25 Amps

Model: 7058-BSS

Features:

• Branch circuit breakers (can also be used for 24-hour circuit protection)
• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• Trip Free design cannot be held ON during fault current condition
• Ignition protected – Safe for installation aboard gasoline powered boats
• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Specifications

Amperage	25A
Maximum Voltage	32vDC
Mounting	Panel Mount 3/8-27 UNS
Circuit Breaker Type	Thermal trip, manual push-button reset only
Terminal Type	1/4 Male Quick Connect
Interrupt Capacity	3000A @ 14.7V 2500A @ 28V
Minimum Operating Temperature	-10 degrees C
Maximum Operating Temperature	60 degrees C
