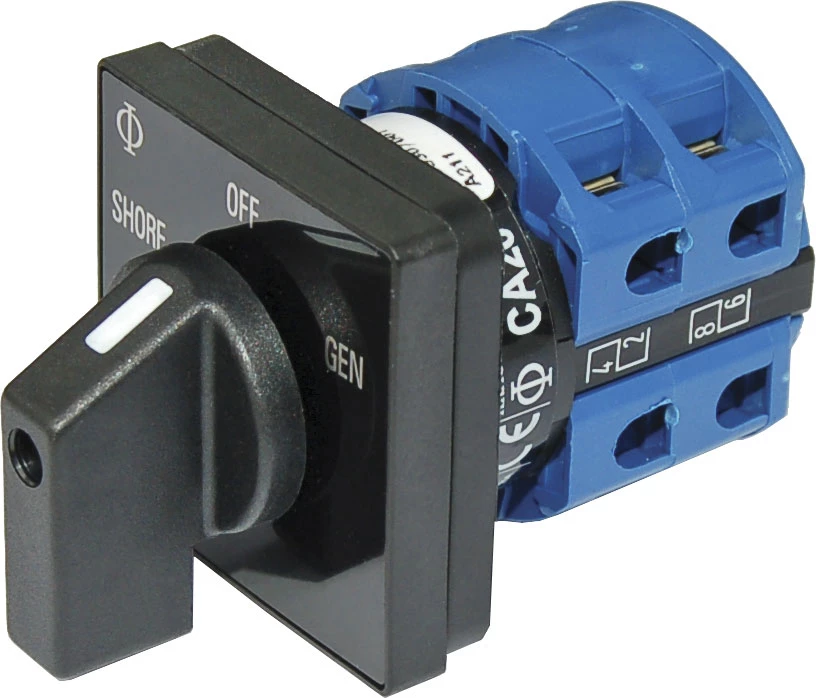

Blue Sea Rotary Switch 120VAC 30 Amp Off + 2 Position

Blue Sea Systems AC Rotary Switch – OFF + 2 Positions 120V AC 30A

Model: 9009-BSS

Features:

• Switches 2 – 120 or 230 Volt AC sources
• Compact solution when circuit protection is provided elsewhere
• Allows connecting one of two different AC sources to one circuit
• Mounts in panels up to 0.16” (4.00mm) thick
• Mounts in panels up to 0.16” (4.00mm) thick
• Intuitive function – One hand operation
• UL listed

Specifications

Positions	2 + OFF
Source Selection	2
Nominal Voltage	120v
Poles	2
Load Circuits Out	1
Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.	30A
Maximum Voltage	600V AC
Source In	2
Dimensions hxwhd	1.89in x 1.89in x 1.91in
