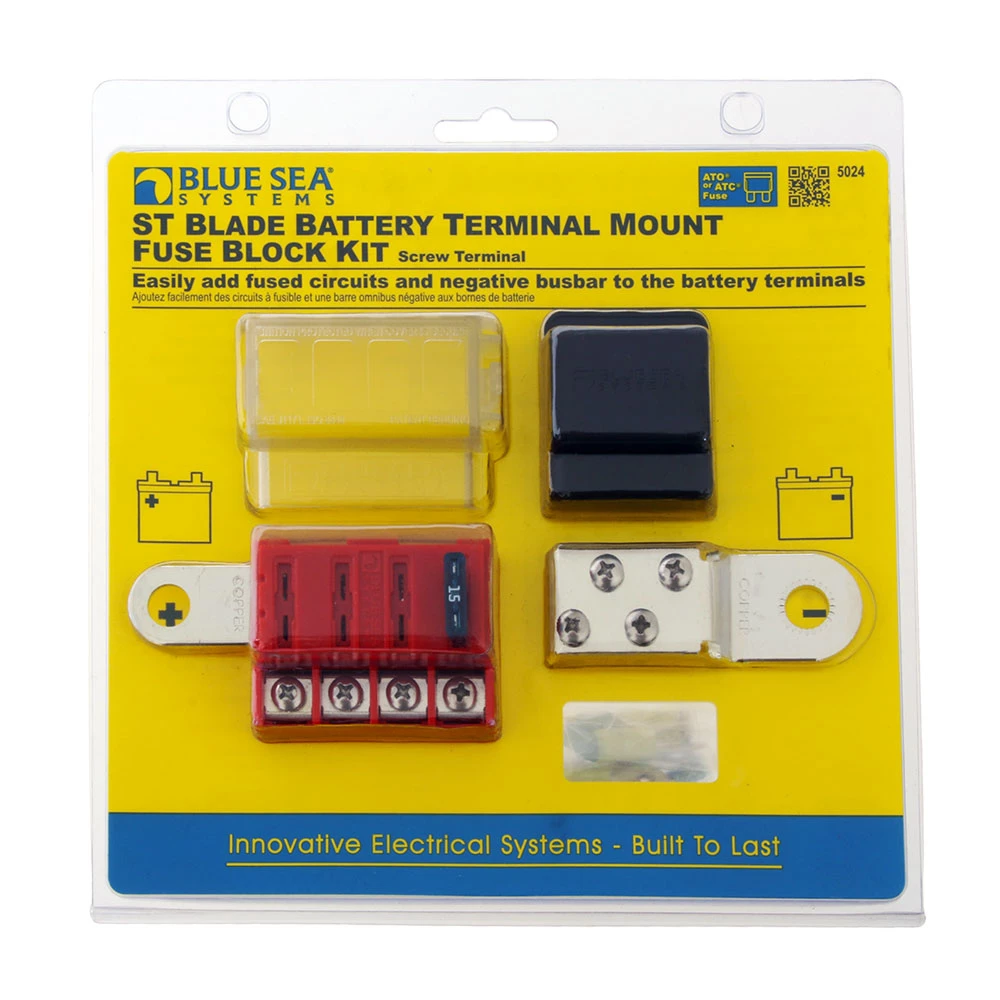

Blue Sea ST Blade Battery Terminal Mount Fuse Block Kit

Power up!

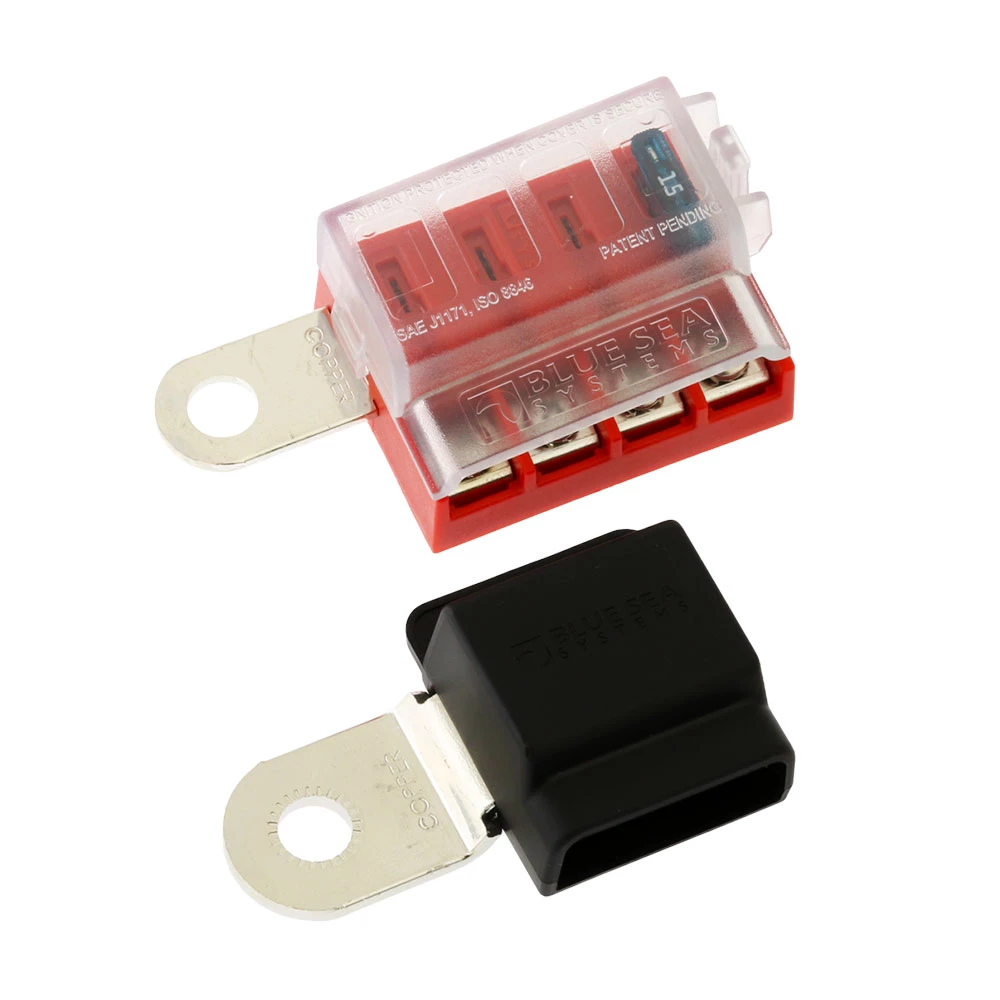

The Blue Sea ST Blade Battery Terminal Mount Fuse Block
Kit allows you to easily add 4 fused circuits and negative
busbar to the terminal of a battery, providing power to new
accessories in your boat or vehicle.

Blue Sea ST Blade Battery Terminal Mount Fuse Block Kit
Features:

• Mounts on the battery terminal stud
• Screw terminals for securing wires
• Nylon insulated ring terminals included for each screw
  terminal
• Accepts small format circuit labels
• Insulating cover meets ABYC/USCG insulation
  requirements
• Ignition Protected–meets ISO 8846 and SAE J1171 for use in a
  gasoline engine compartment

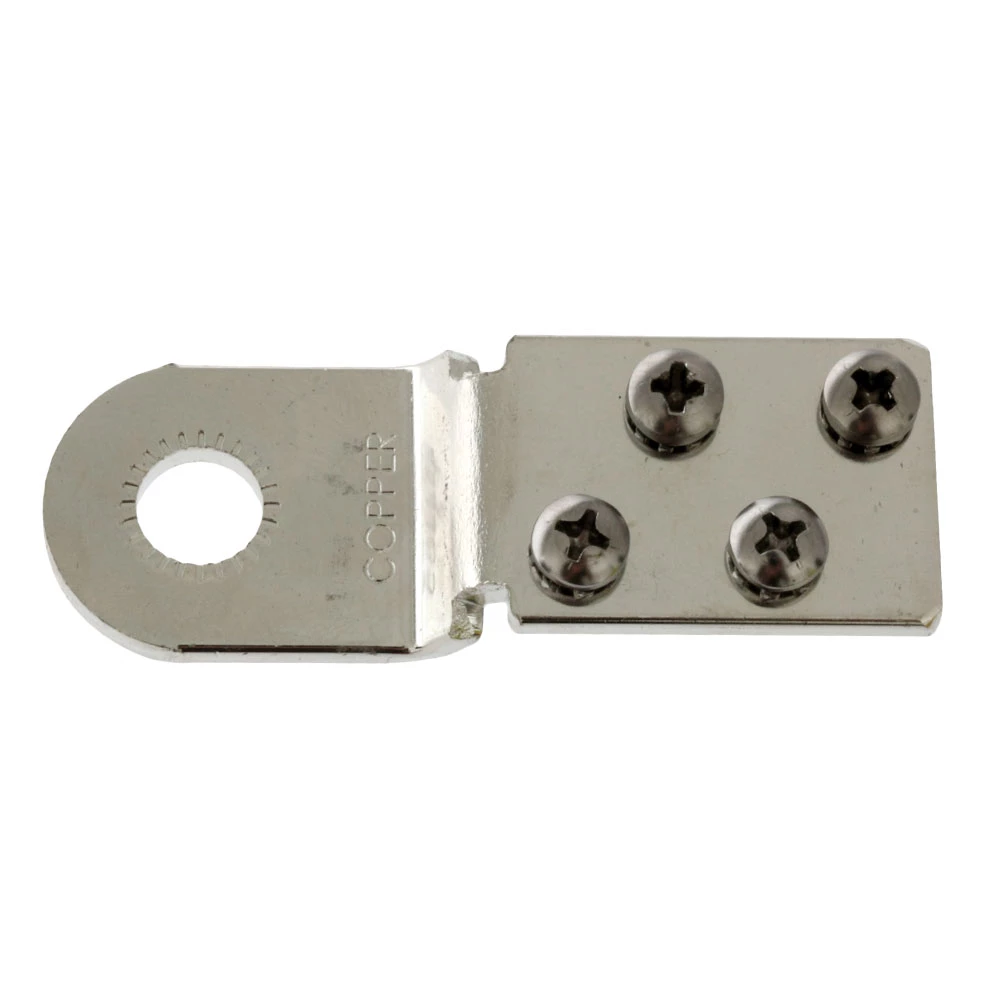

• Includes a 4-circuit negative busbar
• Includes write on labels
• Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring
  terminals

Blue Sea ST Blade Battery Terminal Mount Fuse Block Kit
Specifications:

• Circuits: 4
• Maximum Amperage: 100A per block, 30A per circuit
• Maximum Voltage: 32V DC
• Bus Material: Tin-Plater Copper C11000
• Mounting Hole: 3/8″ (M10) Stud
• Screw Terminal Torque: 15 in-lb (1.69 Nm)
• Screw Terminal Type: #8-32
• Weight: 0.50lb (0.23 kg)
