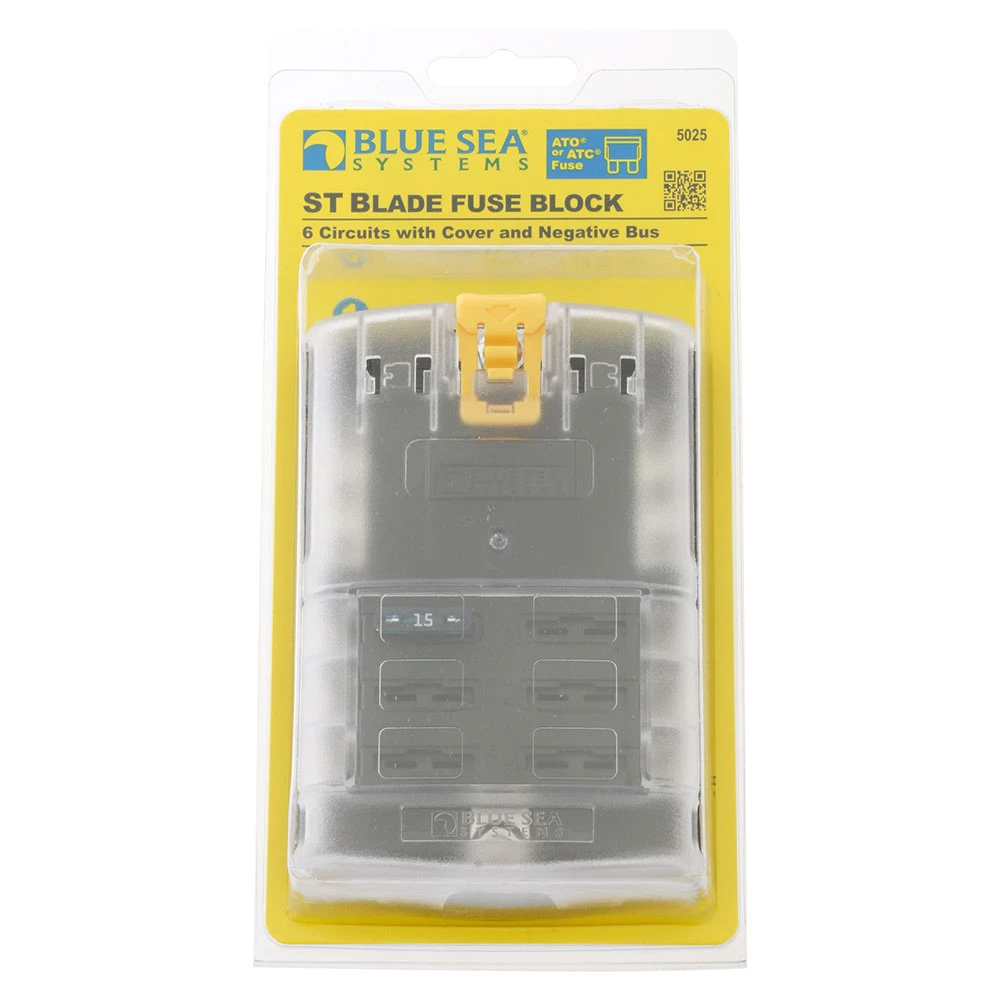

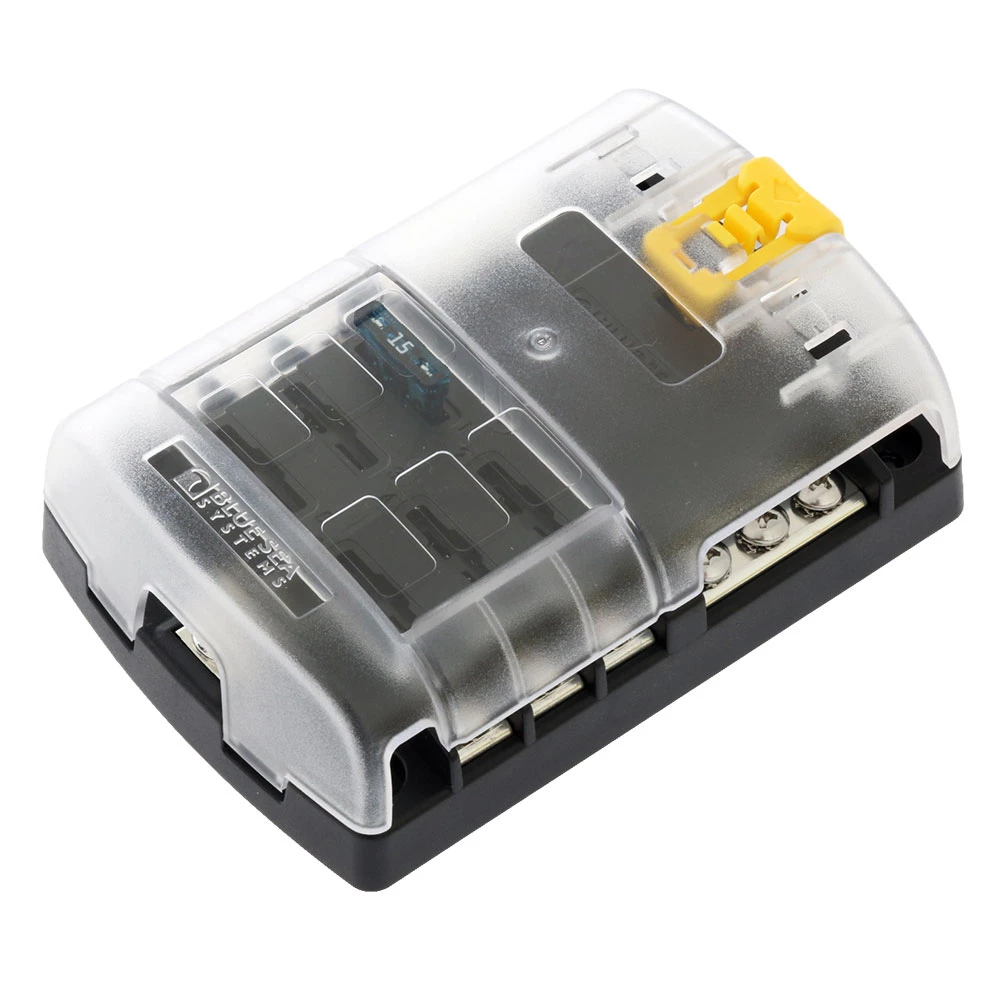

Blue Sea ST Blade Fuse Block – 6 Circuits With Negative Bus And Cover

Consolidates branch circuits and in-line fuses

The Blue Sea ST Blade Fuse Block offers a space
saving and cost effective solution to adding circuit protection
when there are limited available circuit breakers on the
distribution panel. A single circuit breaker on a distribution
panel can provide the circuit protection for the feed wire to the
ST Blade Fuse Block. This is frequently done for electronics that
each have their own ON-OFF switch and don’t require the switching
offered by a circuit breaker. The 6 or 12 position ST Blade Fuse
Block then provides a consolidated location for fuses for each of
the electronics.

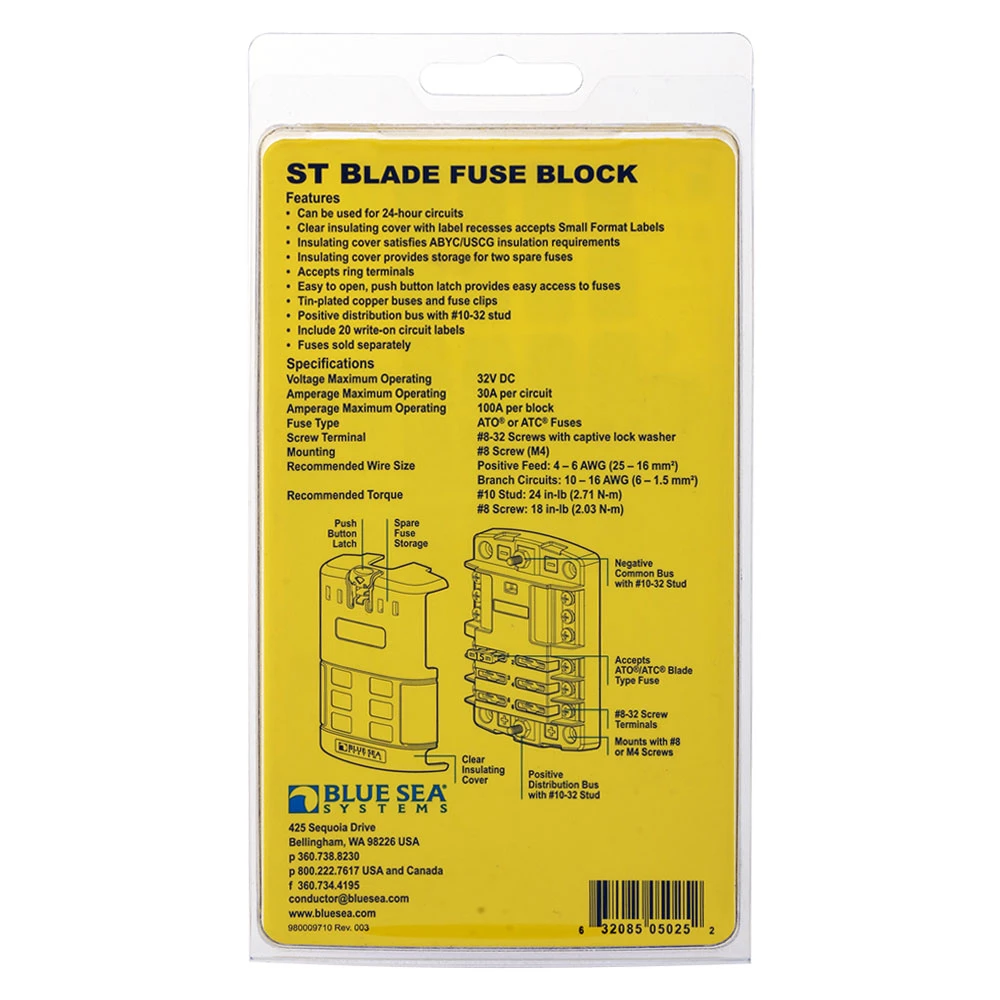

Blue Sea ST Blade Fuse Block Features:

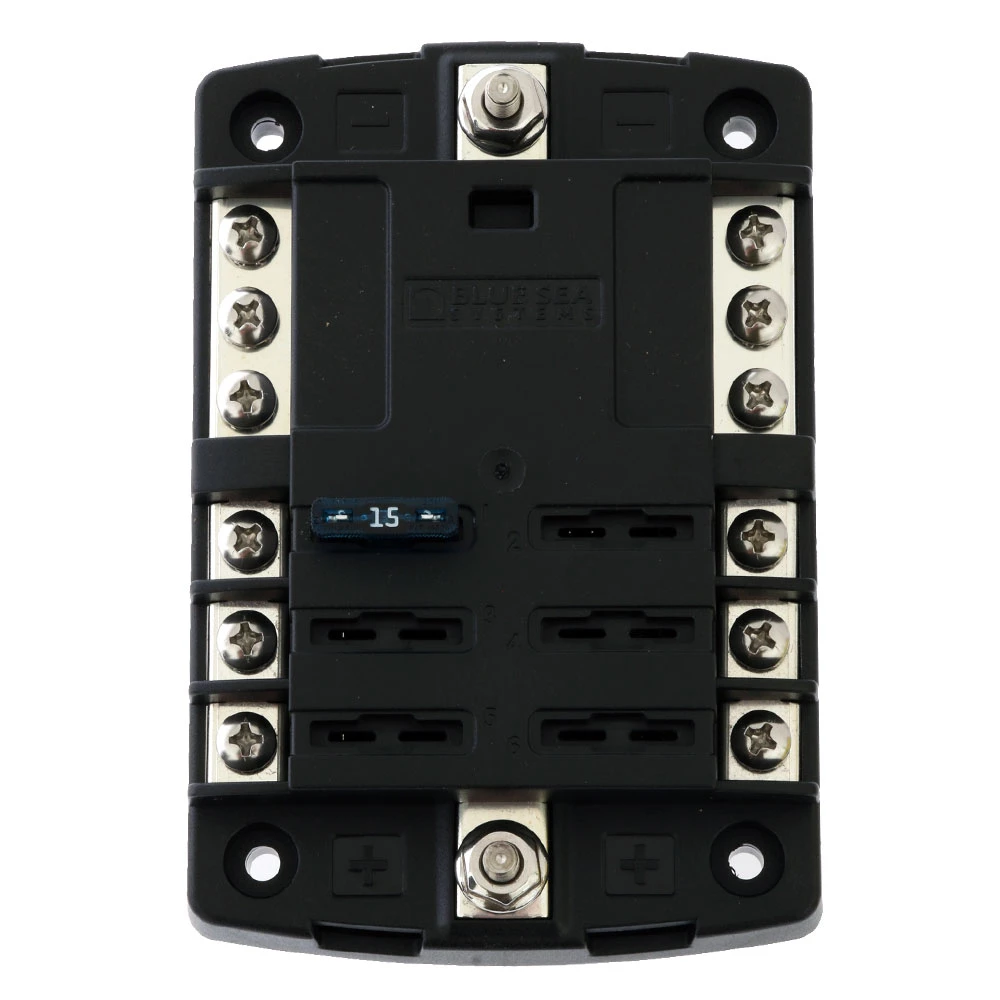

• Positive distribution bus with #10-32 stud
• Can be used for 24-hour circuits
• Models available with or without a cover

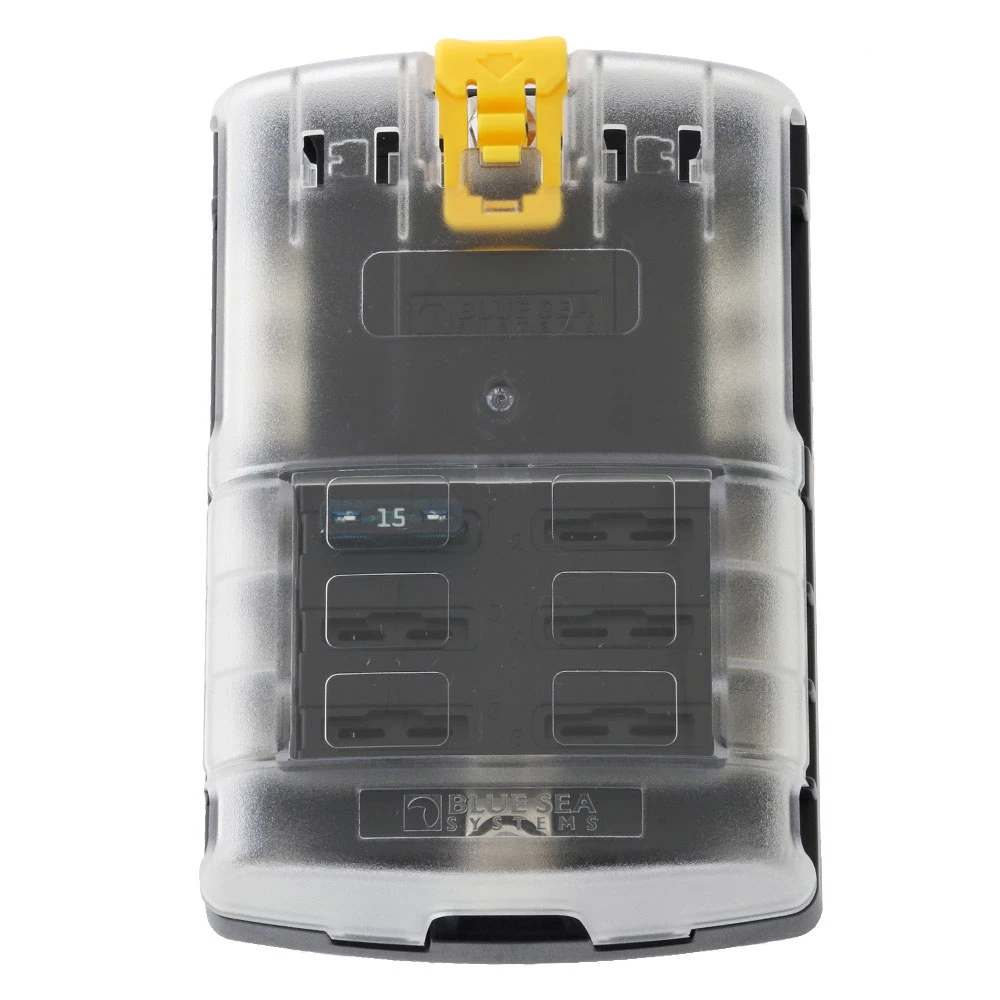

• Cover satisfies ABYC/USCG requirements for insulation,
  incorporates an easy to open push button latch providing easy
  access to fuses, storage for two spare fuses, and label recesses
  that accept Blue Sea Systems” Small Format Labels for circuit
  identification
• Fuse blocks with covers include 20 write-on circuit
  labels
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO and ATC fast acting blade fuses

Blue Sea ST Blade Fuse Block Specifications:

• Part number: 5025
• Circuits: 6
• Maximum Amperage: 100A per block | 30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Negative Bus: #10-32 Stud
• Positive Bus: #10-32 Stud
• Recommended Torque: 24 in-lb (2.71 N·m)
• Screw Terminal Torque: 15 in-lb (1.69 Nm)
• Screw Terminal Type: #8-32 Screws with captive star lock
  washer
• Weight: 0.55lb (0.25 kg)

Note: Fuses sold separately.
