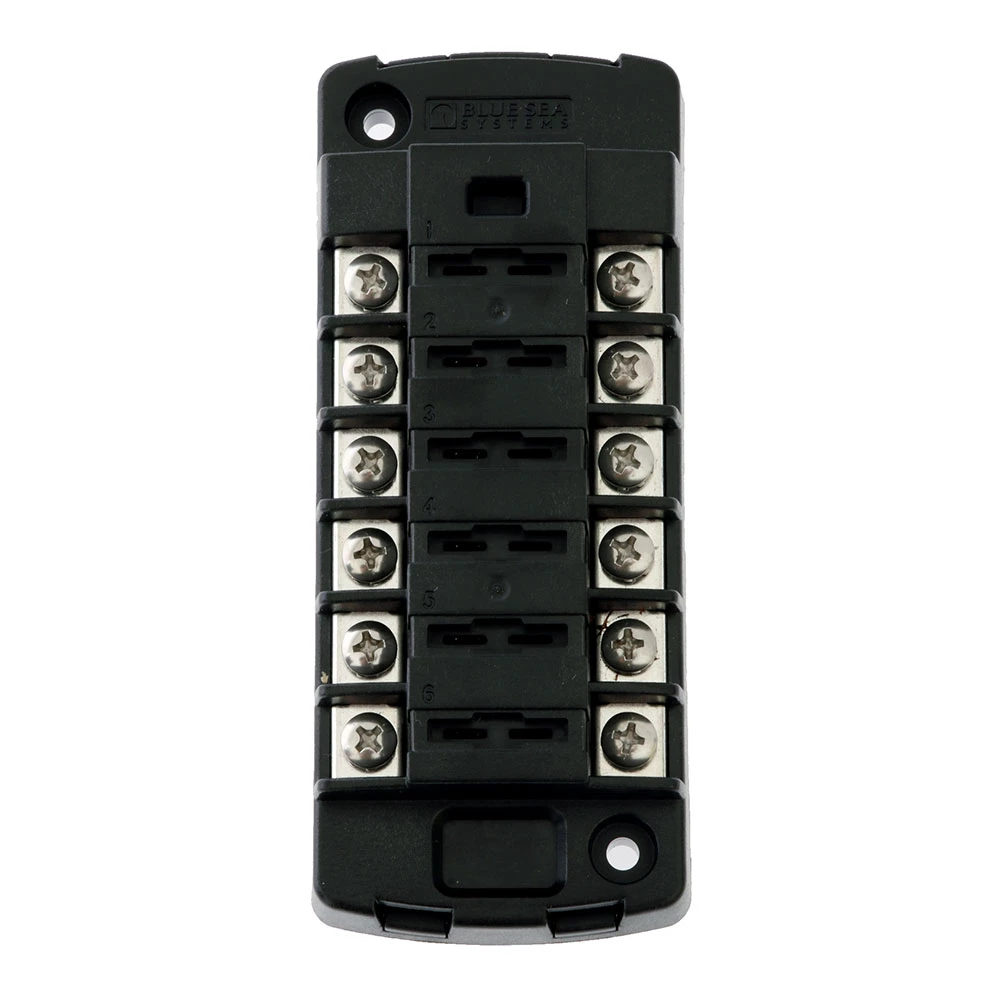

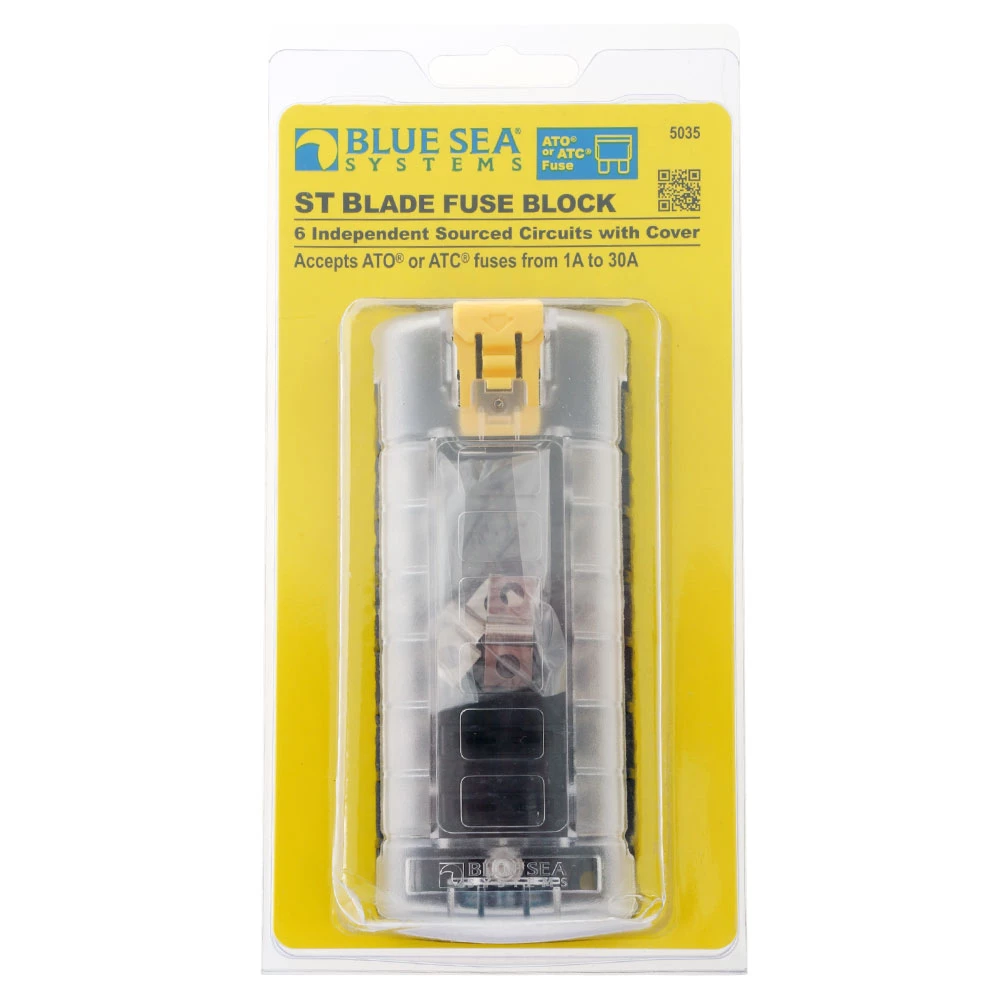

Blue Sea St Blade Fuse Block – 6 Independent Circuits With Cover

Improve the efficiency of the electrical system

The Blue Sea ST Blade Fuse Block is designed with
6 independent circuits. The corrosion resistant, tin-plated copper
fuse clips reduce heat and improve the efficiency of the electrical

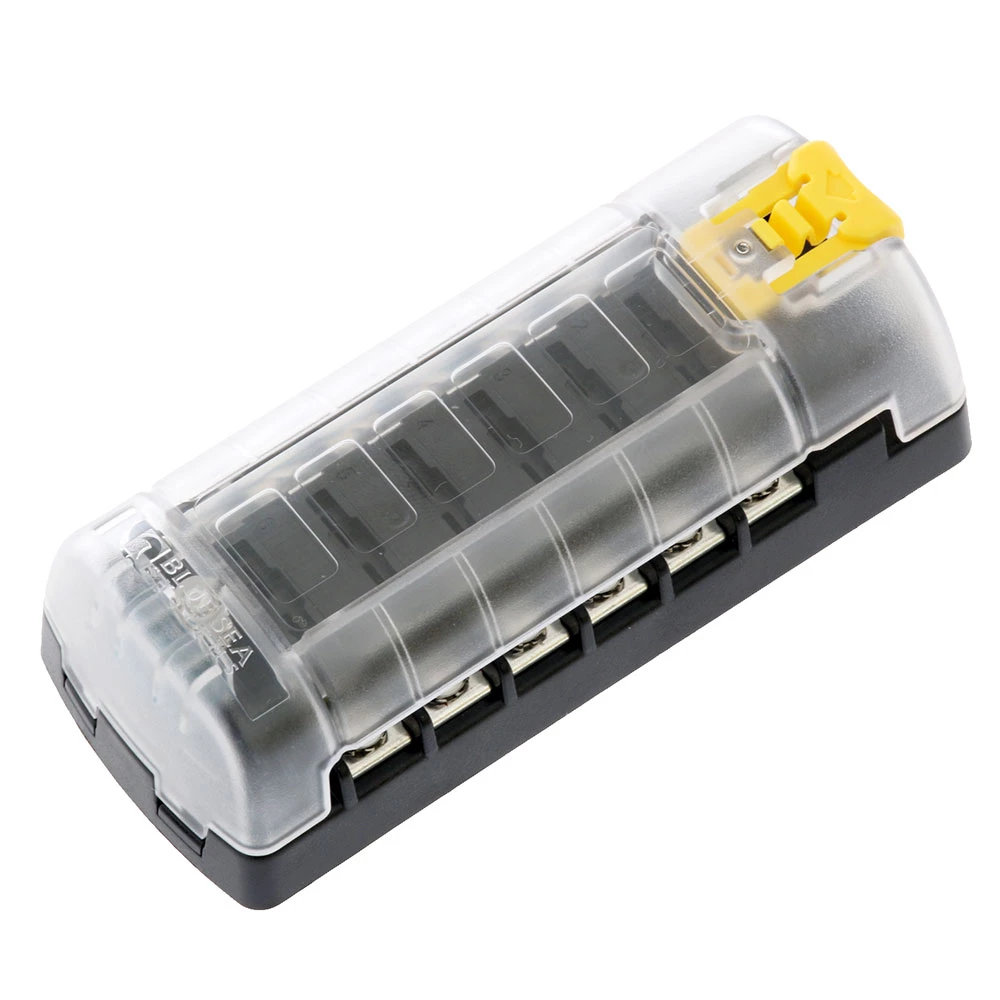

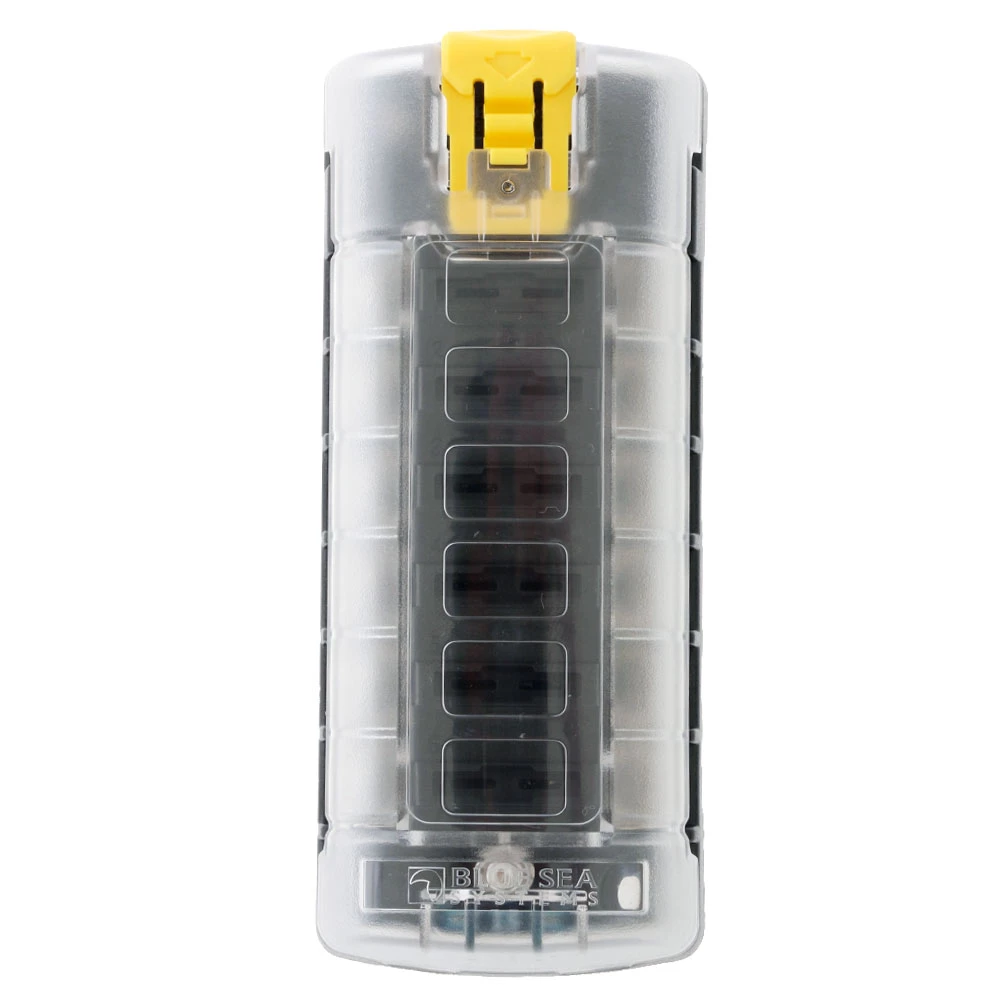

system. Clear insulating cover with label recesses accepts small
format labels. The cover also comes with a spare fuse holder. This
fuse block accepts ring or snap fork type terminals.

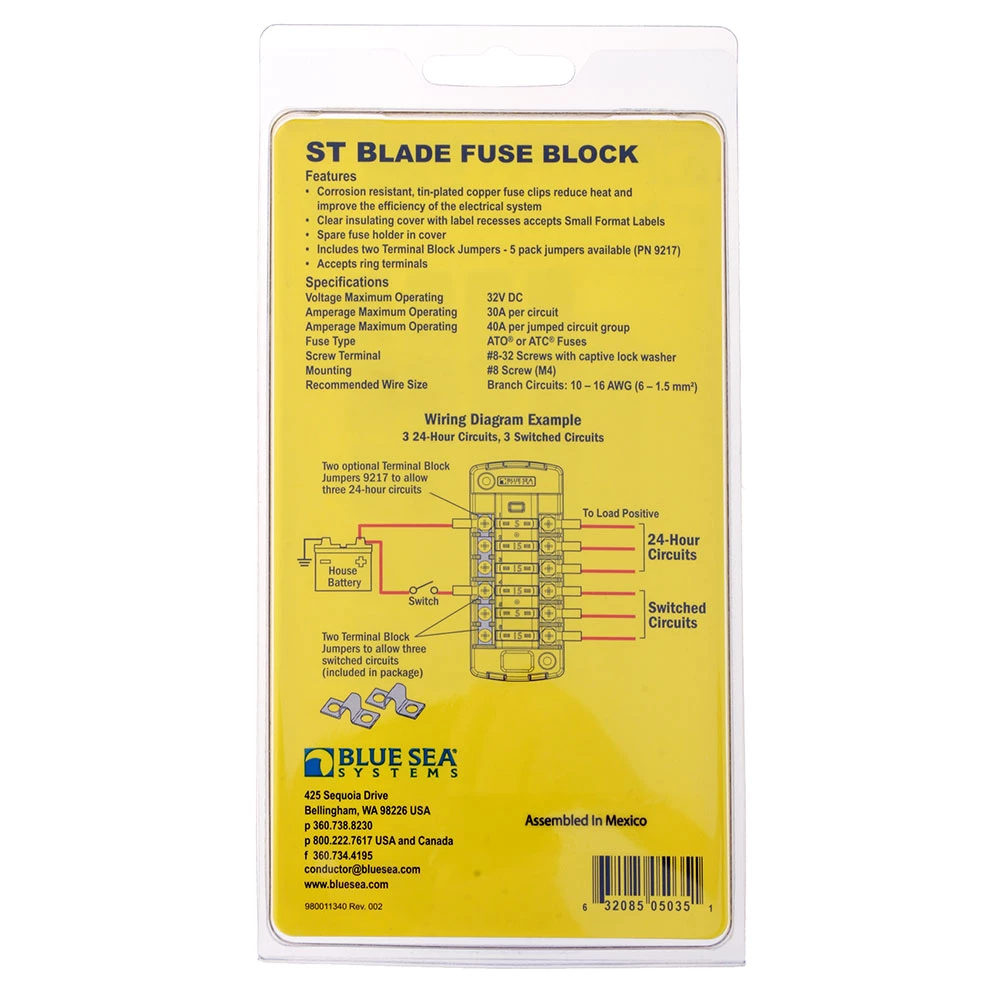

Blue Sea ST Blade Fuse Block Features:

• Corrosion resistant, tin-plated copper fuse clips reduce heat
  and improve the efficiency of the electrical system
• Clear insulating cover with label recesses accepts Small Format
  Labels
• Spare fuse holder in cover
• Accepts ring or snap fork type terminals
• Includes two terminal block jumpers

Blue Sea ST Blade Fuse Block Specifications:

• Part number: 5035
• Circuits: 6
• Maximum Amperage: 30A per circuit | 40A per jumped circuit
  group
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Screw Terminal Torque: 15 in-lb (1.69 Nm)
• Screw Terminal Type: #8-32 with Captive Star
  Lockwasher
• Weight: 0.35lb (0.16 kg)
• Dimensions: 131.32 x 54.23 x 38.57 mm
