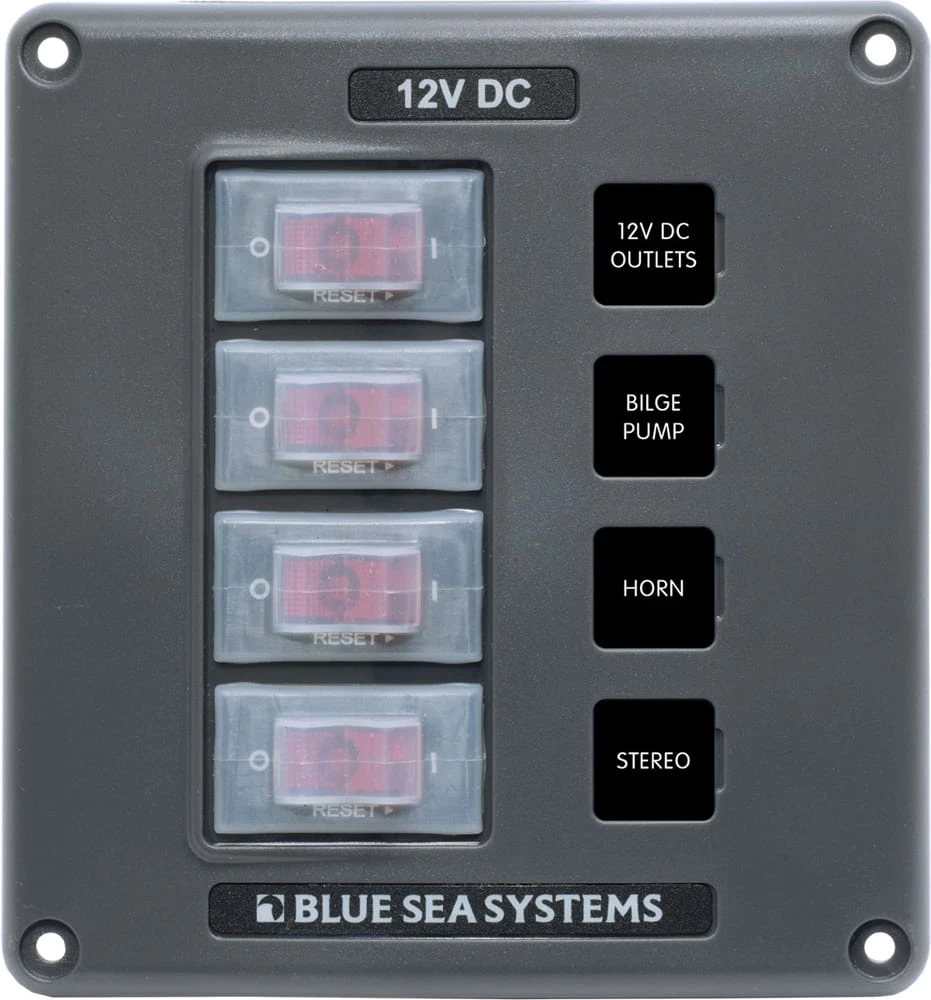

Blue Sea Water-Resistant 12V 4 Circuit Breaker Switch Panel

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panel – Gray, 4 Positions

Model: 4320-BSS

Features:

• Illuminated 15A circuit breakers provide switching, ON indication and overcurrent protection
• Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
• Polycarbonate/ABS panel surface is UV-stabilized, ?ame retardant, and will not corrode
• Silicon breaker boots and gasket protects against water ingress
• Low profle makes it easy to install in tight spaces
• Fast-on circuit breaker connectors make it quick to wire
• Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
• Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Specifications

Color	Gray
Positions	4
Nominal Voltage	12V DC
Circuit Protection	Circuit Breaker
Maximum Amperage	45A 9A @ 24V DC (per circuit)
Terminal Type	1/4” Male quick connect
Hardware	Stainless Steel #6 x 5/8” mounting screws
Ring Terminal Size	M5 (#10)
Dimensions	5.0” H x 1.75”D
