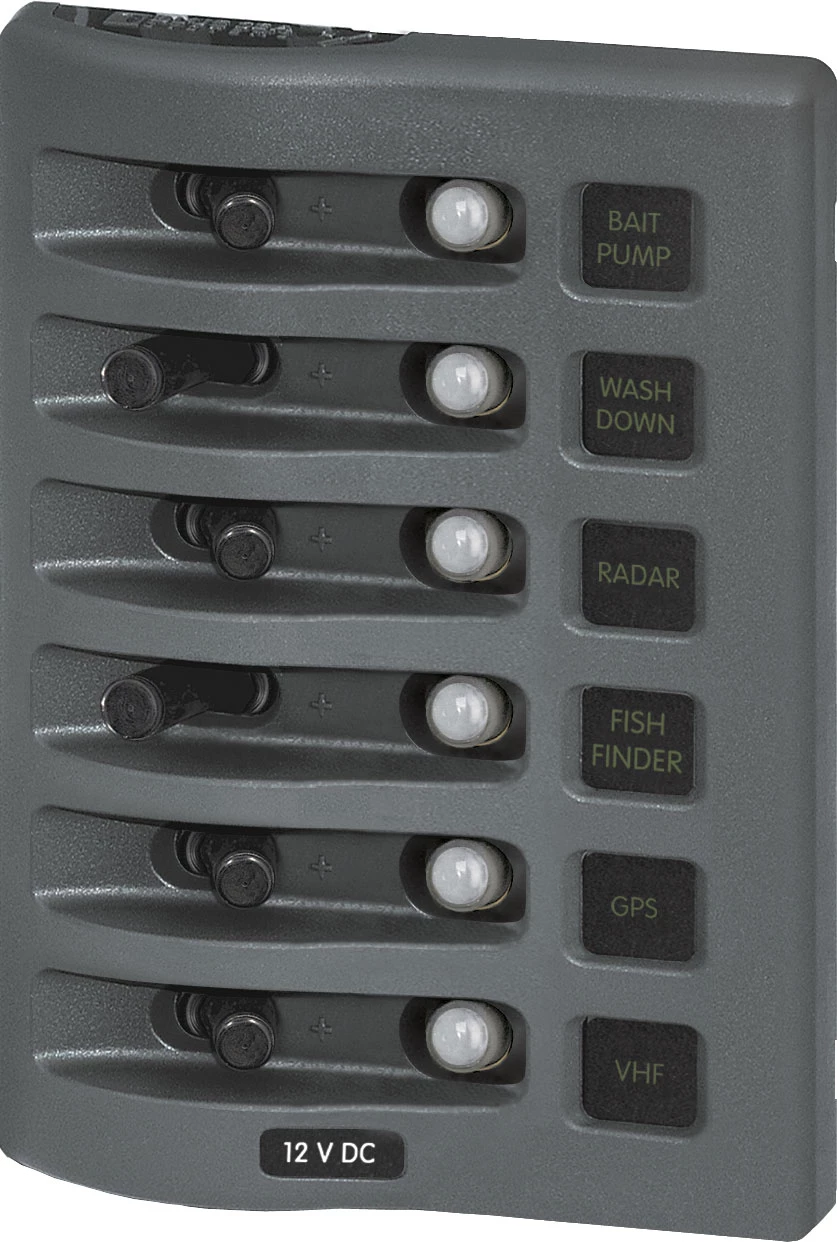

Blue Sea Weather Deck Panel 12v 6 Circuit Breaker Panel

Blue Sea Systems Weather Deck 12V DC Waterproof Circuit Breaker Panel – Gray 6 Positions

Model: 4376-BSS

Features:

• Rated IP67-temporary immersion for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• Each panel can be mounted in four different orientations
• Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications

Weatherproof	Waterproof
Positions	6
Nominal Voltage	12V DC 24V DC
Circuit Protection	Circuit Breaker
Maximum Amperage	15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit)
Panel Cumulative Rating	45A
Backlit Label	Green LED
Backlighting Amperage	10mA /Illuminated Circuit
Backlighting Voltage	12 or 24V DC
Material	Reinforced Polycarbonate
Dimensions	6.00” H x 4.25” W x 3.5”D
