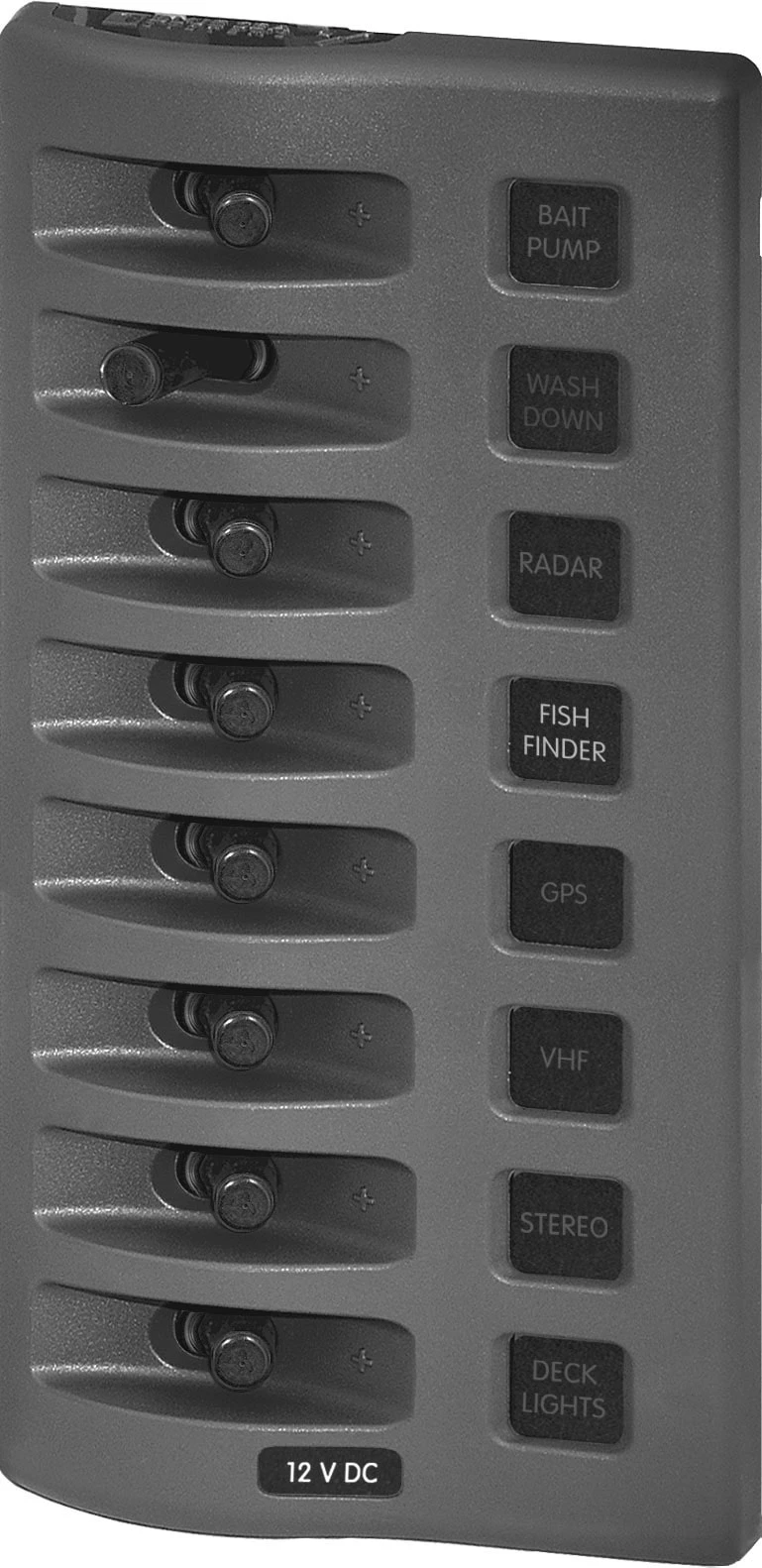

Blue Sea Weather Deck Panel 12v 8 Gang Fuse Panel

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel – Gray 8 Positions

Model: 4308-BSS

Features:

• Panel front rated IP67 when properly mounted with watertight mounting gasket
• IP67 — protected against immersion up to 1 meter for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting circuit for remote switching and dimming
• Available in 2, 4, 6, and 8 circuit models
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications

Weatherproof	Waterproof
Positions	8
Nominal Voltage	12vDC
Circuit Protection	Fuse
Maximum Amperage	15A @ 12V DC (per circuit)
Panel Cumulative Rating	100A
Backlit Label	Bicolored LED
Backlighting Amperage	10mA /Illuminated Circuit
Backlighting Voltage	12V DC
Material	Reinforced Polycarbonate
Dimensions H x W x D	7.7in x 3.88in x 2.50in
